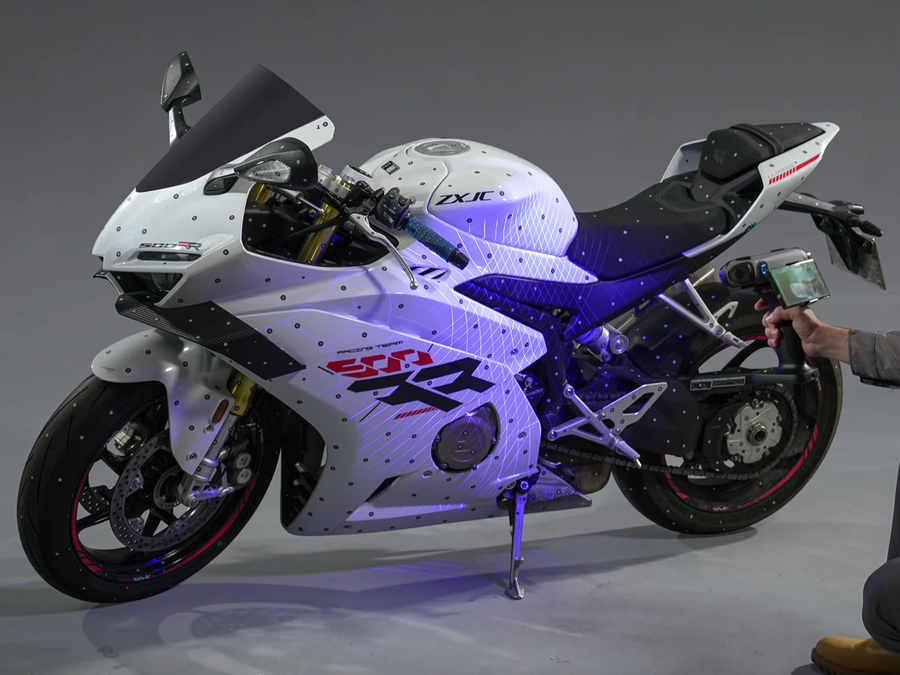

Creality Creality Sermoon S1 3D Scanner

Multi-Light Versatility

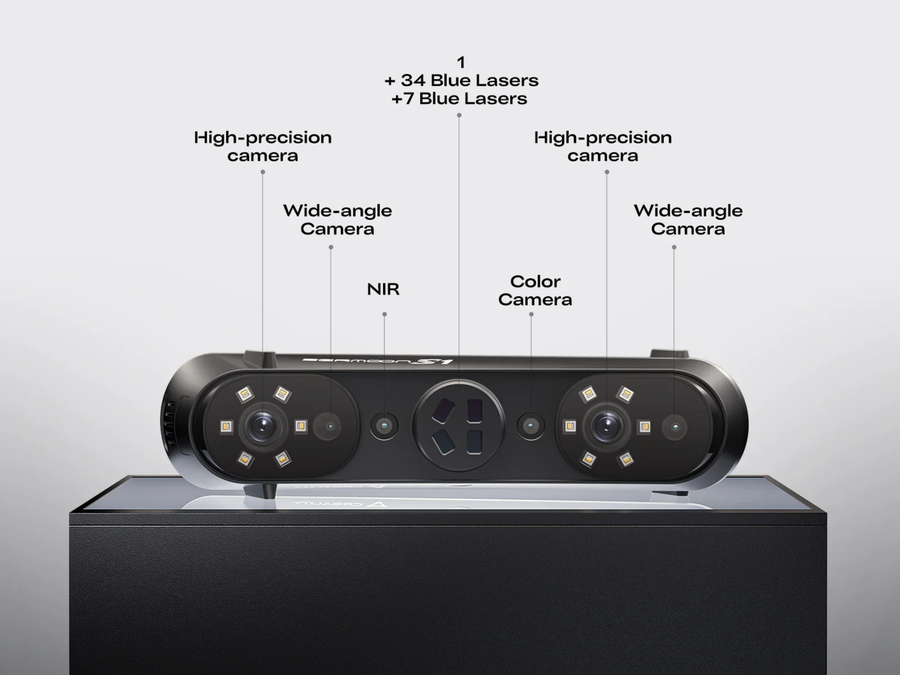

1 + 7 + 34 Laser Line + NIR

Equipped with a precise single-line blue laser and an optimized optical path, the Sermoon S1 excels at scanning deep holes, narrow gaps, and recessed areas-capturing intricate details in hard-to-reach spaces with uncompromising accuraccy.

• 1 Single Laser Line: Accurately capture 3D data of deep holes and hard-to-reach area

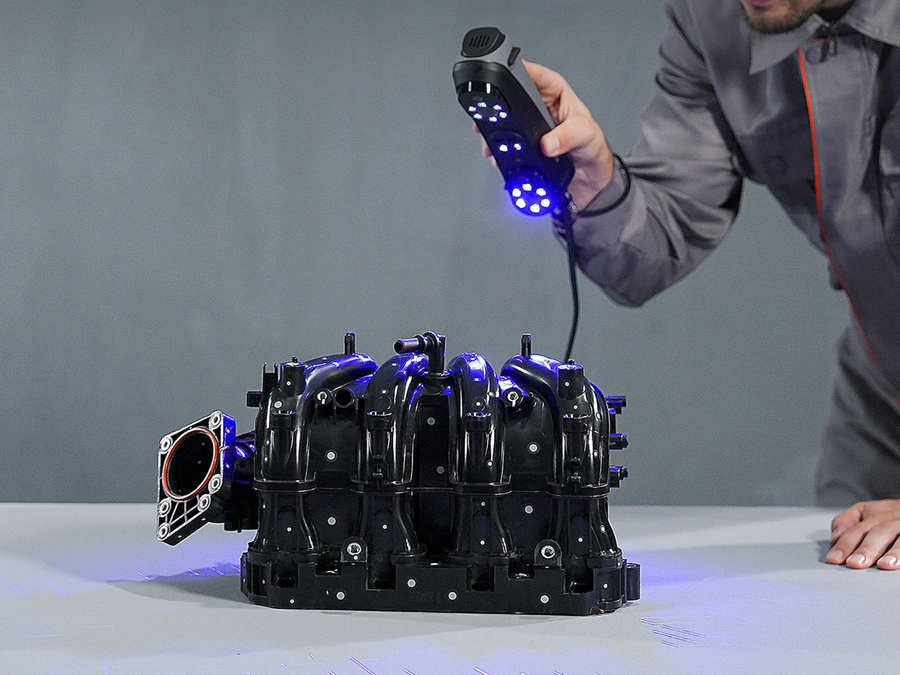

• 7 Parallel Blue Laser Lines: Accurately captures fine surface details of complex objects with single-line precision and up to 0.1 mm resolution
• 34 Cross Laser Lines: Quickly covers medium to large objects, greatly improving work efficiency
• Innovative 4-Lens NIR Structured Light: Fast marker-free scanning for large objects and the human body

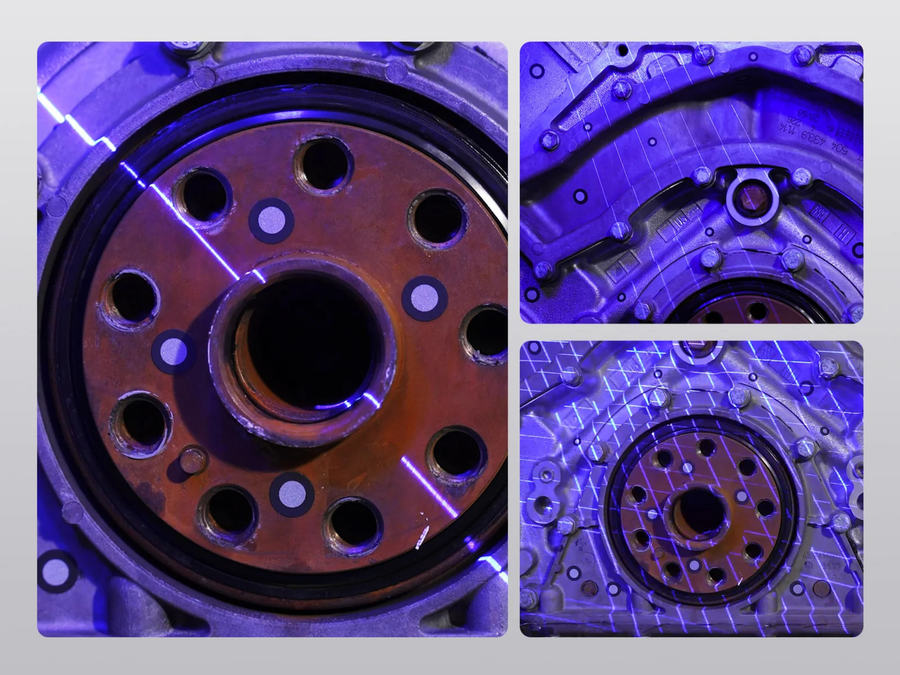

Deep Holes

Narrow Gaps

Recessed Areas

High Accuracy

Metrology-Grade Precision

• Scanning Accuracy: 0.02 mm
• Volumetric Accuracy: 0.02 mm + 0.08 mm/m

High Efficiency

High Speeds No Matter the Size

• High-Speed Scanning: Parallel / Single lines up to 90 FPS & Cross lines up to 70 fps

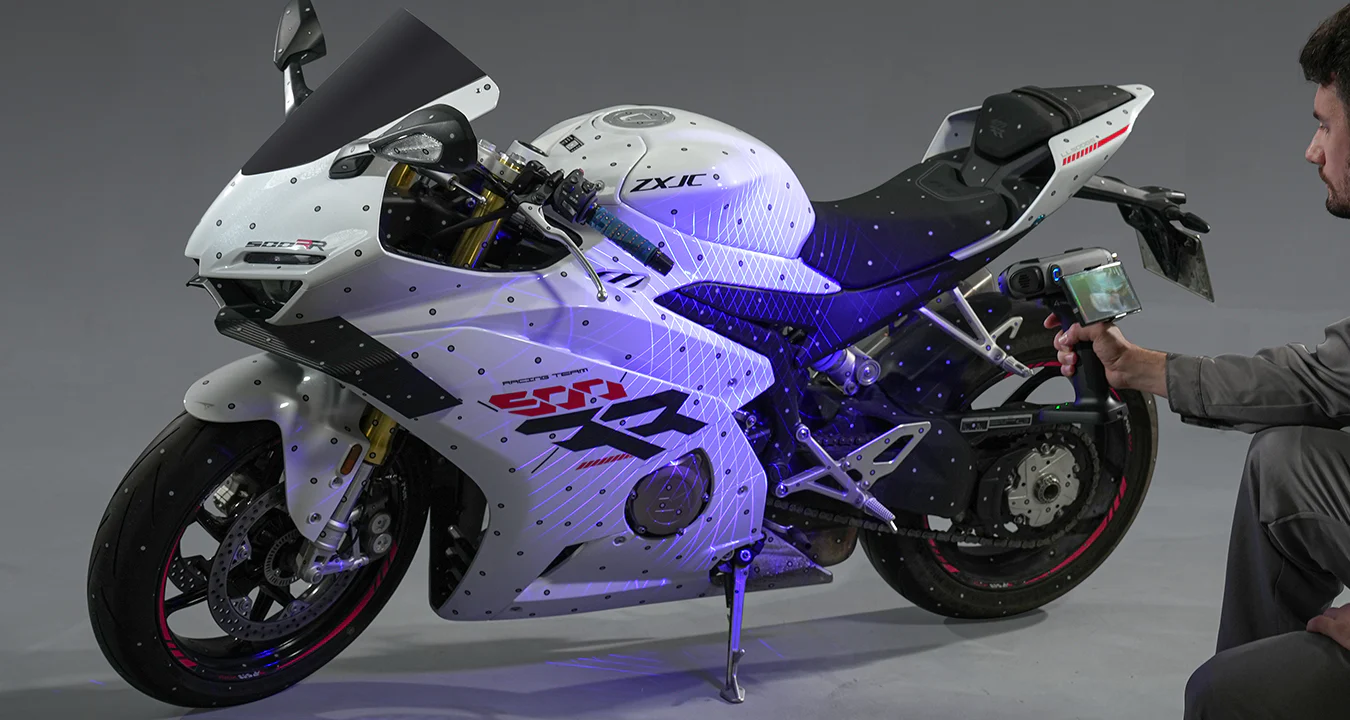

• Wide FOV: 4-Lens NIR Structured Light offers an ultra-wide field of view for marker-free scanning
• Laser Scale: Line Laser Max of 506 x 433 mm at 600 mm
• Infrared Max: Scans human body in as little as 1 minute

Versatile Size Scanning

Scanning Range 5 - 4000 mm³

Combining blue laser lines and infrared structured light, the Sermoon S1 supports a range from as small as 5 x 5 x 5 mm³ to as large as 4000 x 4000 x 4000 mm³. Ideal for automotive components, coins, bolts, figurines, or even the human body.

User-Friendly Design

Easy Scanning Anywhere

In bright outdoor light or in complete darkness indoors, achieve consistent performance with the Sermoon S1. Capture black and metal objects without spray powder.

• Single / Cross-Line laser: ≤ 100k lux
• 7-Line laser: ≤ 50k lux

Intelligent

Smart, Stable Scanning

AI-driven temperature compensation and advanced thermal management ensure consistent performance during long scans. One-Shot 3D imaging improves tracking stability, reducing frame drops and misalignment for more accurate results.

CrealityScan 4.0

An intuitive, AI-powered software with step-by-step guidance, one-click processing, and powerful editing tools for fast, easy scanning.

Streamlined Workflow Integration

Works seamlessly with Windows, macOS, Android, and iOS devices. Easily export to leading reverse engineering and design software like QuickSurface and Geomagic Design X for a smoother workflow.
