Shining 3D EinScan-SP Desktop 3D Scanner V2

The EinScan-SP is a desktop 3D scanner designed to deliver super fine detailed geometric reconstructions of objects. It features a scan volume of up to 1200 x 1200 x 1200mm, scan accuracy of up to 50 microns, and scan speed of .25 frames per sec. It also offers easy entry-level scanning with one-click operation and is compatible with 3D printers. This scan is ideal for reverse engineering applications.

  • Scan Volume: Up to 1200 x 1200 x 1200mm
  • Scan Accuracy: Up to 50 microns
  • Scan Speed: .25 frames per sec
  • Accessible scanner w/ high quality results

Please note these are Version 2

List Price: $2,099.00
Price: $2,099.00
Price: $...
Order Now: Processed Immediately MatterHackers Shipping Truck Free U.S. Shipping
Qty
loading...
Product No. M-X7E-X3Y1

EINSCAN-SP

THE EXPERT CHOICE DESKTOP 3D SCANNER

Shining 3D's EinScan-SP is a desktop 3D scanner designed to deliver super fine detailed geometric reconstructions of objects, all while maintaining a user-friendly interface and workflow.

Key Features of the EinScan-SP:

  • Scan Volume: Up to 1200 х 1200 х 1200mm
  • Scan Accuracy: Up to 50 microns
  • Scan Speed: .25 frames per sec
  • Single Frame Scan: <4 seconds
  • Dual Scan Modes: Auto and Fixed
  • Colored object scanning available
  • Ideal for reverse engineering small objects


Recreate Fine Details

The EinScan-SP generates high-quality 3D data with every scan for finely detailed reconstruction results.

  • Scan Accuracy: Up to 50 microns
  • Compatible with Colored Objects
  • Uses White LEDs with Structured Light Technology
Joystick 3D model created by Shining 3D using a scan from an EinScan-SP

Object on an EinScan-SP in front of a Shining 3D printer

EASY ENTRY-LEVEL SCANNING

3D scanning is accessible with the EinScan SP thanks to its one-click scanning, automatic calibration, seamless connection with 3D printers, and more.

  • One-click operation
  • 1 Second Single Scans
  • Compatible with 3D printers
  • User-friendly for any skill level

POST-PROCESSING AT THE SOFTWARE LEVEL

EinScan-SE and EinScan-SP's software include helpful functions that readjust the data coordinates to fix or modify the scanned model with a variety of functions available.

  • Autofills holes
  • Smooths and sharpens model
  • Auto mesh to watertight 3D data

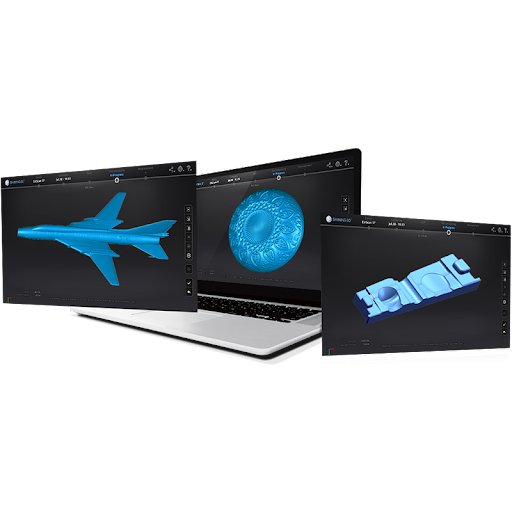

Software program for EinScan-SE and EinScan-SP

Detailed models generated from scans by EinScan-SP

ACCESSIBLE HIGH-RESOLUTION SCANNING

The high-resolution and fast scane speeds on the EinScan-SP captures makes it ideal for professional use while still accessible for personal use.

  • Scan Speed: Up to 4s
  • 0.05mm Accuracy allows for reverse engineering
  • Max Scan Volume Up to 1200x1200x1200mm

What are the Main Differences Between the EinScan-SE and EinScan-SP?

EinScan-SE EinScan-SP
Model EinScan-SE EinScan-SP
Price $999 $2,199
Max Scan Volume 700 x 700 x 700mm
(27.5 x 27.5 x 27.5 in)
1200 x 1200 x 1200mm
(47.2 x 47.2 x 47.2 in)
Single Shot Accuracy ≤0.1mm ≤0.05mm
Scan Speed <8s <4s
Calibration Board Standard High Definition
Turntable Standard Turntable w/ Markers
Includes Tripod No Yes

What Comes with the EinScan-SP?

1 x EinScan-SP Desktop 3D Scanner
1 x High-Definition Calibration Board
1 x Turntable with markers
1 x Stand
1 x Tripod
1 x Power Cable
1 x USB Cable
1 x User Manual

What are the Technical Specifications of the EinScan-SP?

GENERAL
Technology Scanning via Structured Light
Made in China
COMPUTER REQUIREMENTS
Graphics Card Nvidia Series (GTX 660 or higher);
Graphics memory > 2G
Interface 1 x USB 2.0 or 3.0
Windows Win7, Win8, Win10 (64-bit)
CPU Dual-core i5 or higher
RAM >16 GB
DIMENSIONS
Scanner Dimensions
(W × D × H)
570mm x 210mm x 210mm
22.4" x 8.2" x 8.2"
Weight (unpacked) 4.2kg (9.2 lbs)
Weight (packed) 7.0kg (15.4lbs)
SCANNER FEATURES
Camera Resolution 1.3 Megapixels
Scan Mode Fixed (Mode of Alignment: Feature;
Manual; Markers)
Auto (Mode of Alignment: Turntable;
Manual; Markers; Turntable Coded Targets)
Texture Yes
Colored Objects Yes*
Calibration Board High Definition
Turntable Turntable with markers
Light Source White Light
SCAN VOLUME
Minimum Scan Volume 30 x 30 x 30mm
(1.1" x 1.1" x 1.1")
Maximum Scan Volume
(Fixed Scan)
1200 x 1200 x 1200mm
(47.2" x 47.2" x 47.2")
Maximum Scan Volume
(Auto Scan)
200 x 200 x 200mm
(7.8" x 7.8" x 7.8")
SCANNER PARAMETERS
Single Shot Accuracy ≤0.05mm
Scan Speed Fixed - <4s; Auto - <1min
Range of Single Capture 200 x 150mm (7.8" x 5.9")
Point Distance 0.17mm ~ 0.2mm
Stand-off Distance 290 ~ 480mm (11.4" - 18.8")
Turntable Load Capacity 5kg (11bs)
SOFTWARE
Software EXScan S
Supported File Export Format STL, OBJ, ASC, PLY
OS compatibility Microsoft Windows 7, 8, 10 (64bit)
COMMUNICATION
Screen None
Connectivity USB
POWER
Power Supply 50W
Input Voltage DC 12 v, 3.33 A
WARRANTY
Warranty Period 12 Months from purchase

*For transparent, reflective, or dark objects, a surface treatment such as spray powder will be needed to capture surface features
