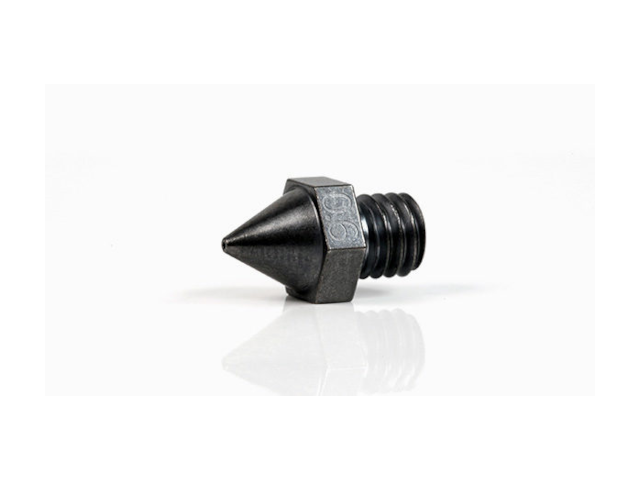

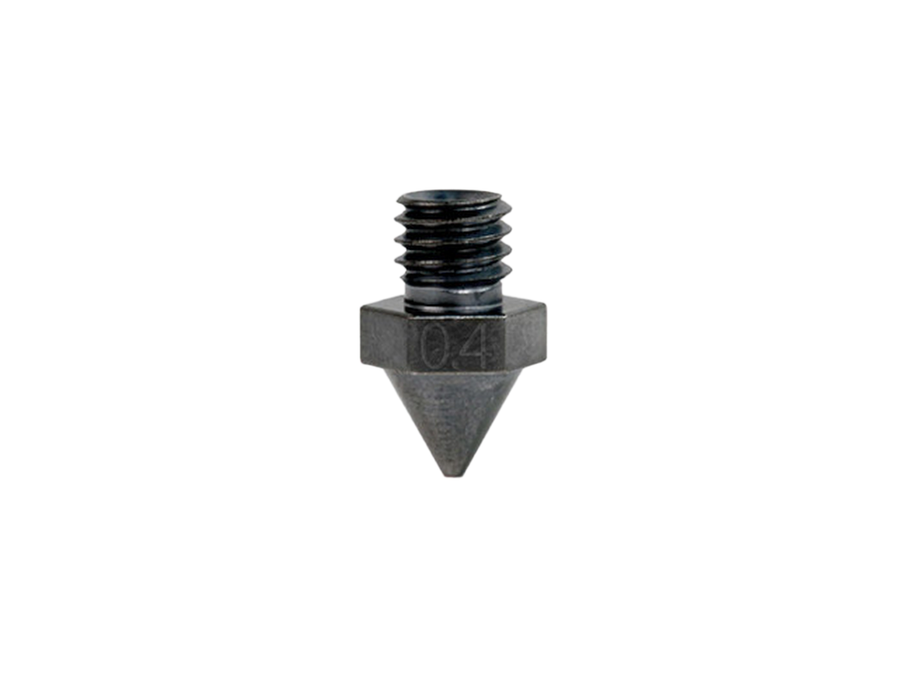

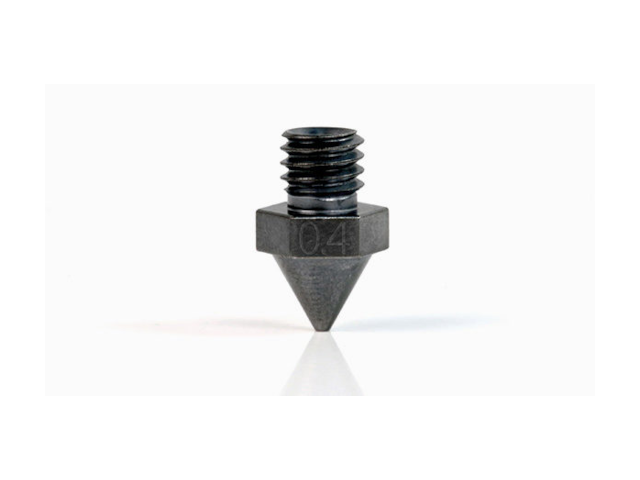

Raise3D Raise3D Steel Nozzle with WS2 Coating 0.40mm
A drop-in replacement for the standard nozzles on Raise3D Pro3 Series, Pro2 Series, and E2 3D Printers. Raise3D Steel Nozzles with WS2 Coating are designed for use with composite or filaments with abrasive additives such as carbon fiber, ceramic, metal, and more. Capable of printing at temperatures of up to 450°C, these nozzles balance optimized melt flow with a high level of durability.
To learn about available discounts, training, and maintenance options, please use the form below and a MatterHackers Expert will contact you within one business day. Alternatively, you can always feel free to give us a call at +1 (800) 613-4290 or email sales@matterhackers.com.
To get an instant quote, add everything you need to your cart, and click "Download as quote".
RAISE3D STEEL NOZZLE WITH WS2 COATING
Raise3D Steel Nozzles with WS2 Coating is designed for use with composite or filaments with abrasive additives such as carbon fiber, ceramic, metal, and more. Capable of printing at temperatures of up to 450°C, these nozzles balance optimized melt flow with a high level of durability.
Here are the key features of the Raise3D Steel Nozzle with WS2 Coating:
- Low Friction coefficient with WS2 Coating for low material accumulation
- Good lubrication and anti-abrasive performance under high temperatures (up to 450°C)
- Optimized Flow Behavior for composite filament
- Mohs Hardness of 7.8
DIFFERENT SIZES FOR DIFFERENT PROJECTS
Raise3D Steel nozzles with WS2 coating are available in 3 different sizes.
- 0.4mm
- 0.6mm
- 0.8mm
TECHNICAL SPECIFICATIONS:
- Diameter: 1.75mm
- Compatability:
- Pro3 Series
- Pro2 Series
- E2
- Mohs Hardness: 7.8
- Printing Temp: 450°C
- Coefficient of heat conductivity: 26W/m.k
- CTE: 12 (μm/m)/ °C
- Packaging Size (WxDxH): 130x110x5mm
- Weight with Packaging: 9g
