Shining 3D Shining 3D FreeScan Trio 3D Scanner
The FreeScan Trio is SHINING 3D's groundbreaking marker-free laser handheld 3D scanner, designed to deliver professional-grade accuracy without the hassle of traditional reference markers. Ideal for quality control, dimensional inspection, and reverse engineering, it streamlines complex scanning workflows while maintaining exceptional measurement precision. Part of SHINING 3D's trusted FreeScan metrology lineup, the Trio brings flexibility and performance together in one powerful device.
- Marker-free scanning technology eliminates setup time and surface preparation for most workflows
- High-accuracy laser scanning optimized for quality control and dimensional inspection

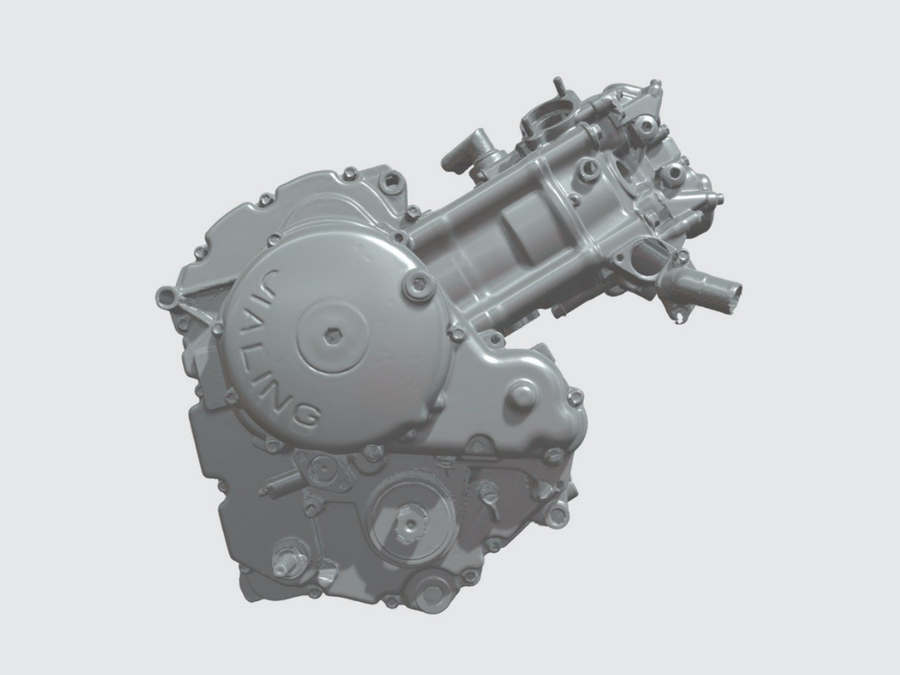

- Purpose-built for reverse engineering, enabling fast and reliable capture of complex geometries
Jump To:
| • Main Features | • Professional Bundle Features | • Tech Specs |
|---|

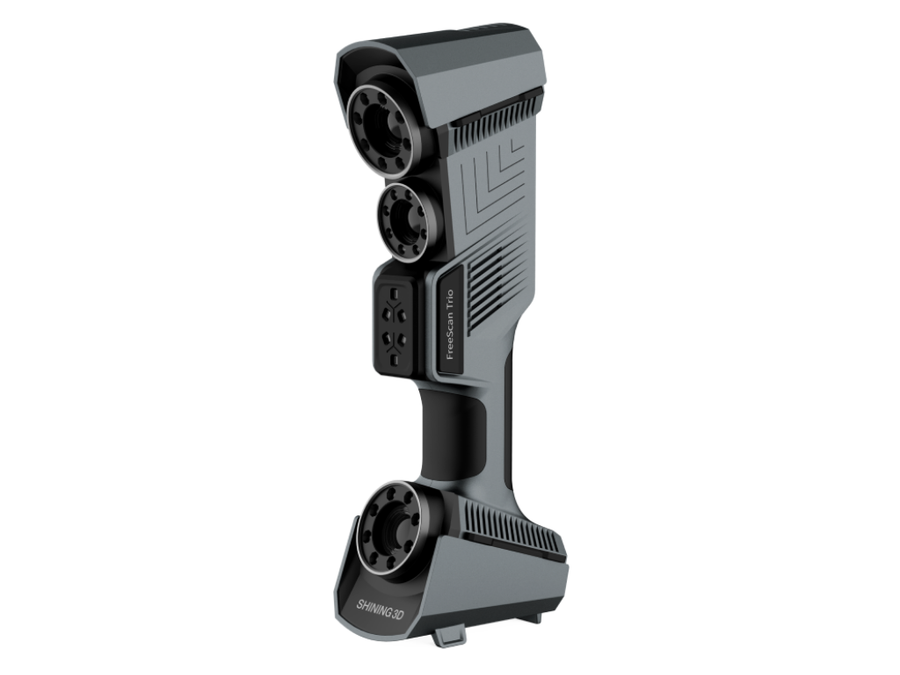

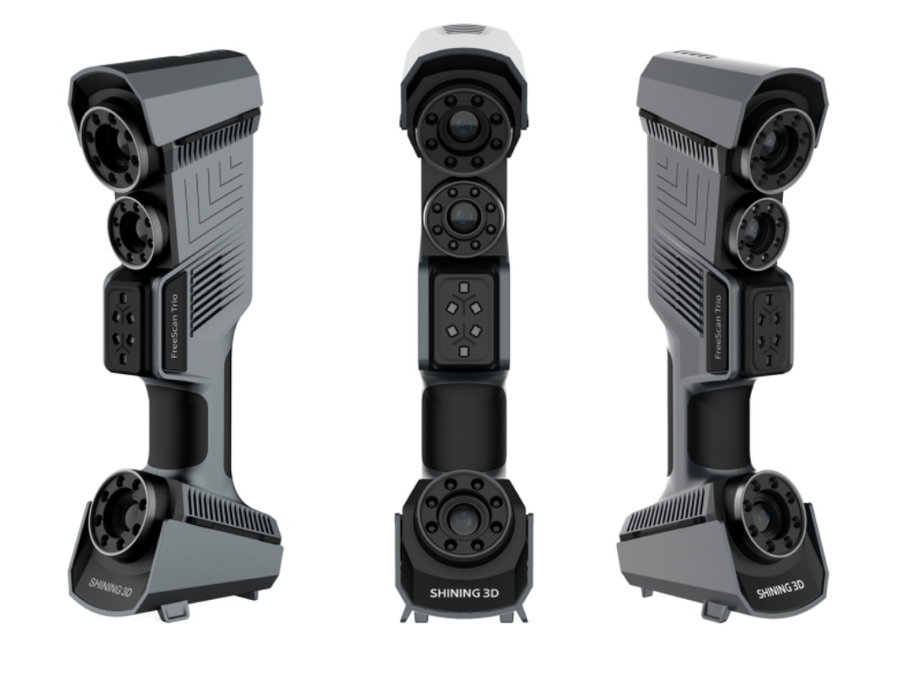

FreeScan Trio Marker-Free Laser 3D Scanner by SHINING 3D
Precision laser scanning without markers — engineered for professional metrology.

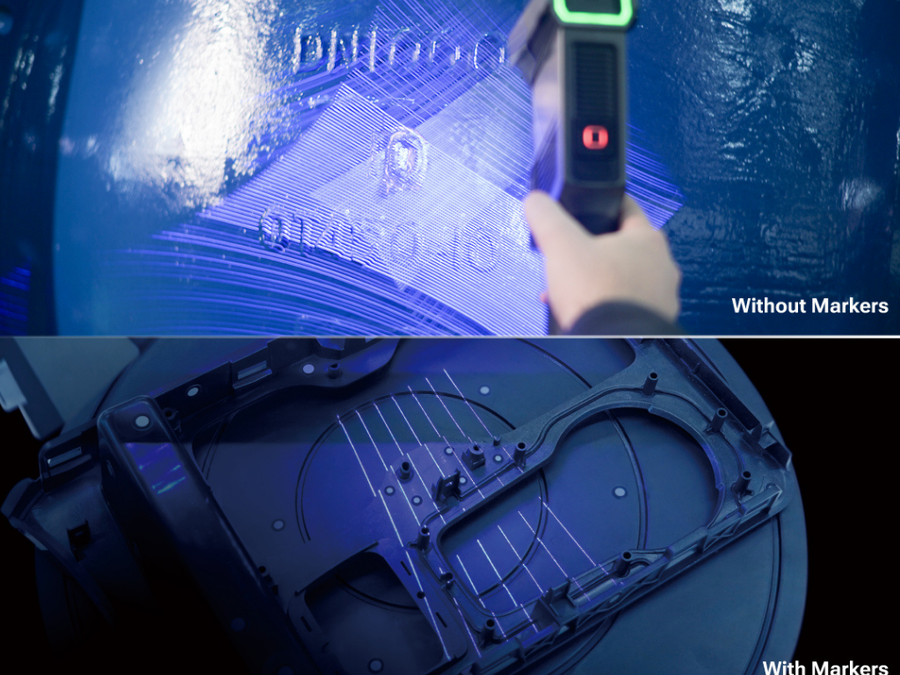

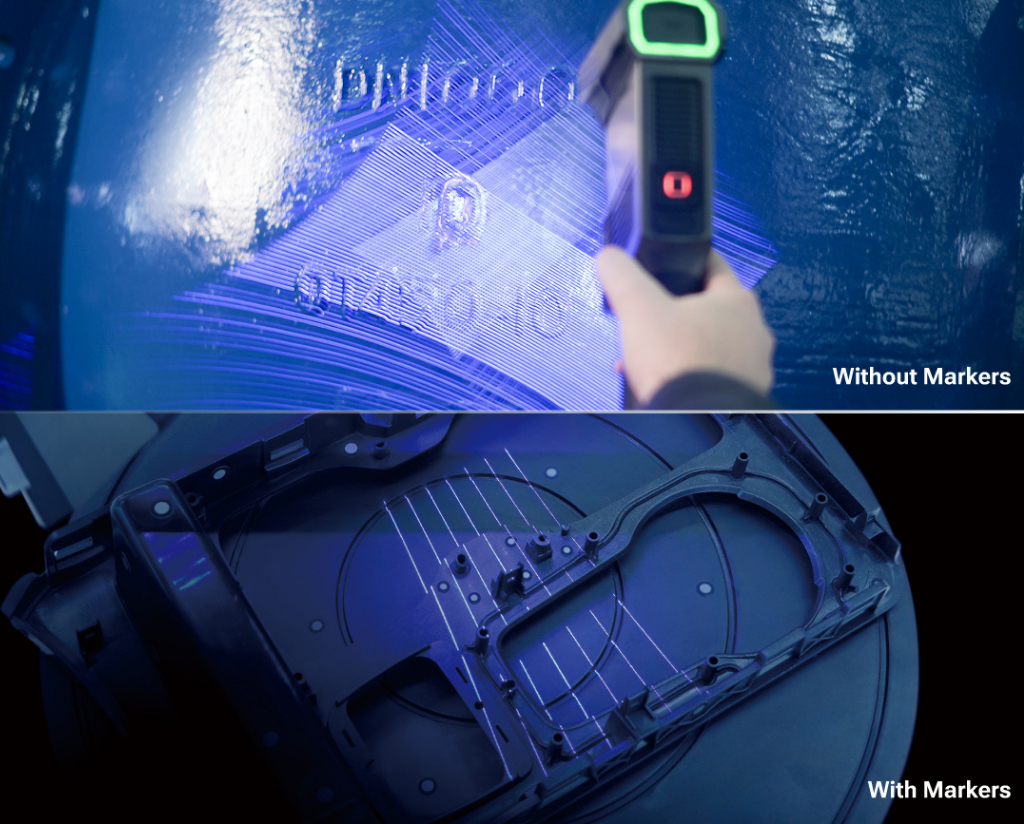

Marker-Free Laser Scanning Technology
The FreeScan Trio eliminates the need for adhesive reference markers that traditionally slow down scanning workflows. This marker-free approach saves significant setup time and allows operators to scan surfaces more freely without altering or potentially damaging delicate parts.
- No marker placement required for most scanning scenarios
- Faster scan preparation and reduced consumable costs
- Cleaner, non-invasive scanning process for sensitive surfaces
Professional-Grade Metrology Accuracy
Engineered for industrial and professional use, the FreeScan Trio delivers the high-precision measurements demanded by quality control teams and metrologists. Its laser-based capture system ensures reliable, repeatable data across complex part geometries.
- Designed to meet rigorous quality control and inspection standards
- Consistent measurement repeatability across complex and organic shapes
- Trusted SHINING 3D metrology engineering behind every scan

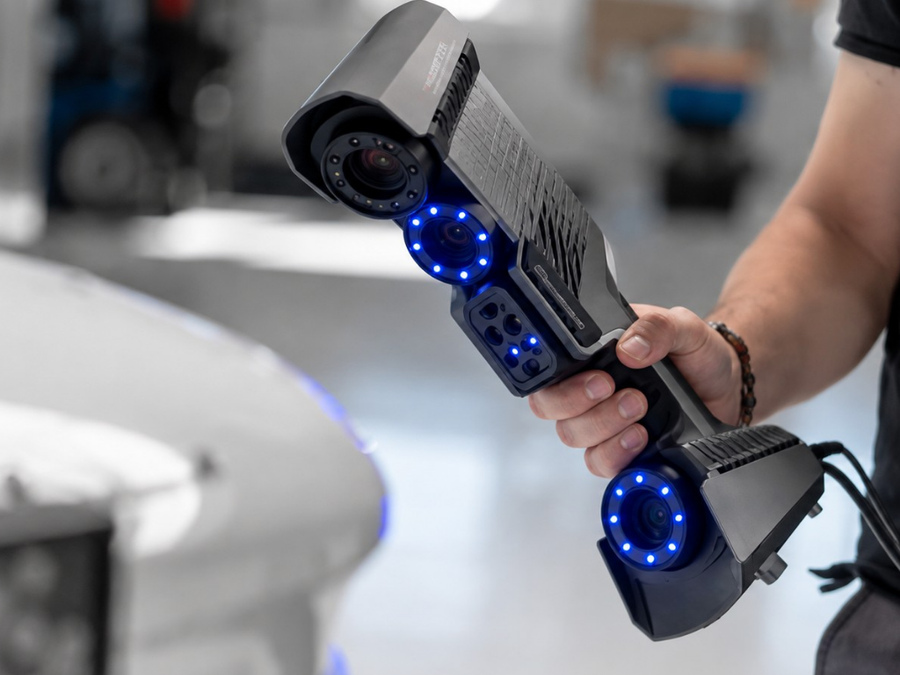

Versatile Handheld Design for Any Environment
The handheld form factor of the FreeScan Trio gives operators the freedom to capture large assemblies, intricate components, and hard-to-reach features without being tethered to a fixed setup. Its portability makes it equally effective on the shop floor, in the field, or in the lab.
- Lightweight handheld body for extended scanning sessions
- Adaptable to diverse scanning environments and part sizes
- Supports reverse engineering workflows from initial capture to final model
EXModel Pro Features
| Feature | |
|---|---|
| Mesh Editing (Fill Holes, Smoothing, Editing Boundaries) | ✓ |
| Mesh Alignment (Coordinates/ N-points/ Fine Align) | ✓ |
|
Primitives Extraction / Construct References |
✓ |
|
Cross Sections / 2D Sketching / 3D Sketching |
✓ |
| Fit / Manual Free Form Modelling / Auto Surfacing | ✓ |
| Export Features / Profile as IGES / STEP / DXF | ✓ |
| Extrude / Revolved Surfaces | ✓ |
| Helix / Loft / Sweep / Fill Surface (Class A surfaces) / Blend surface / Flatten | ✓ |
| Constraints / Offset / Patterns / Sketch Assist in 2D Sketch | ✓ |
| Unroll Mesh & Roll 2D Sketch | ✓ |
| Trim to Solid / Cut / Combine / Intersect / Fillet / Chamfer / Patterns | ✓ |
| Hybrid Modelling (Free-Form & Parametric) | ✓ |
| Transfer Design and Feature Tree to other Packages | ✓ |
| Compare | Mesh vs Mesh |
Technical Data
| Specification | Specification | ||
|---|---|---|---|
| High Speed Scan | 26 laser lines | Detailed Scan | 7 parallel laser lines |

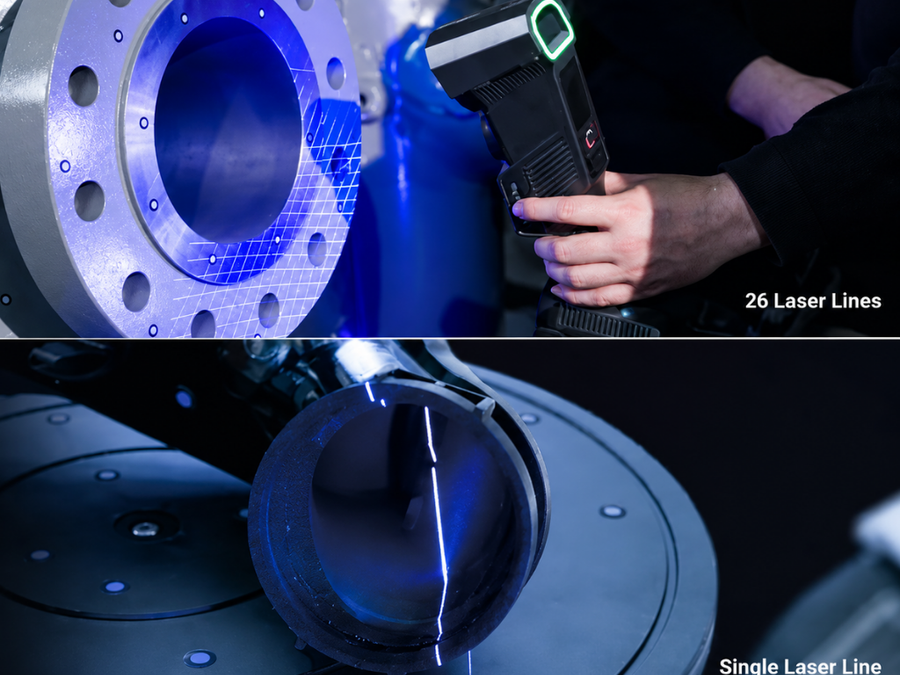

| Deep Hole Scan | 26 / single laser lines | No Markers Scan | 98 laser lines |

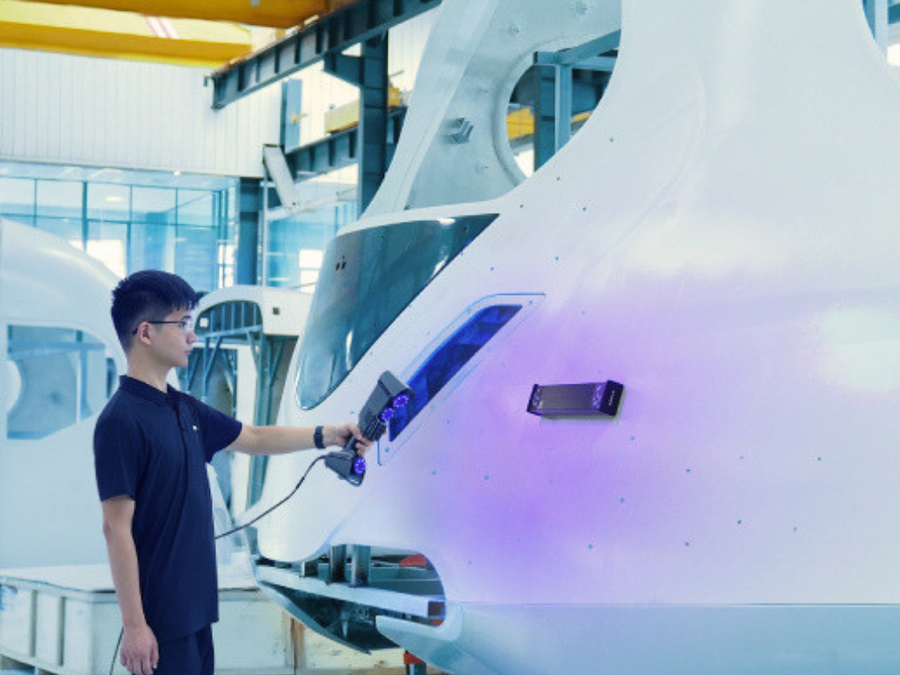

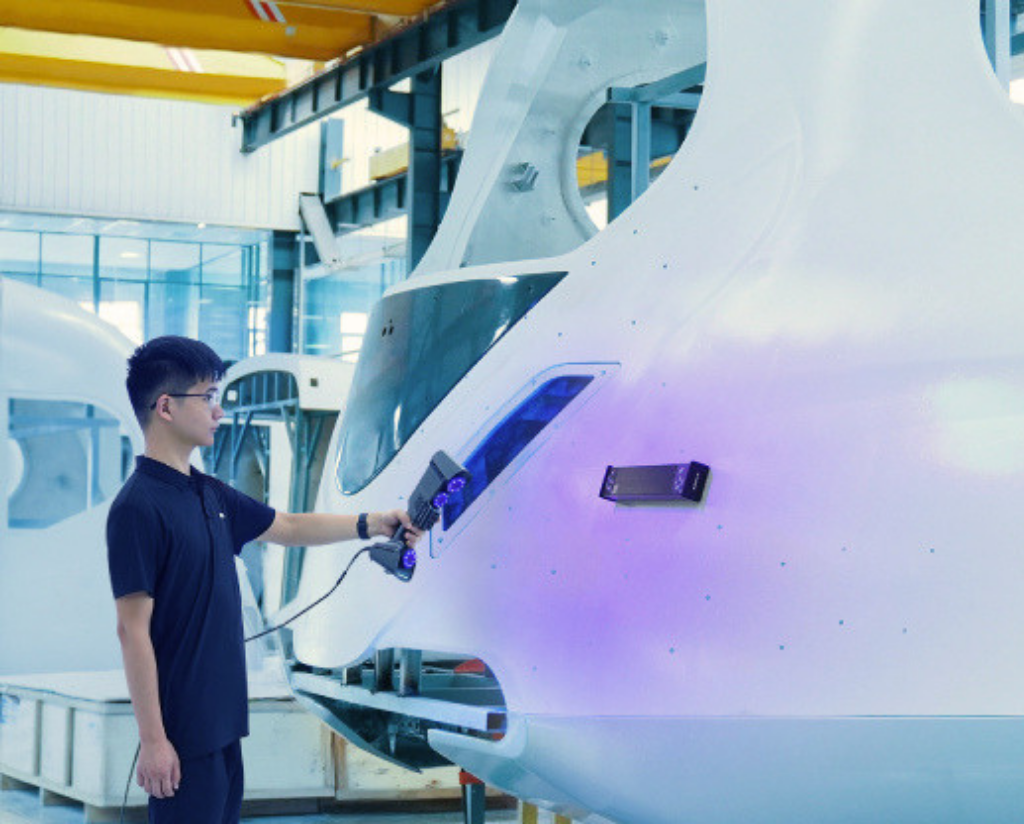

| Large Parts | Photogrammetry mode, no coded markers required | Accuracy | 0.02 mm |
| Volumetric Accuracy | 0.02 + 0.015 mm/m (with photogrammetry) | Scan Speed | Up to 3,010,000 points/s |
| Max. FOV | 650 x 580 mm | Point Distance | 0.01 ~ 3 mm |

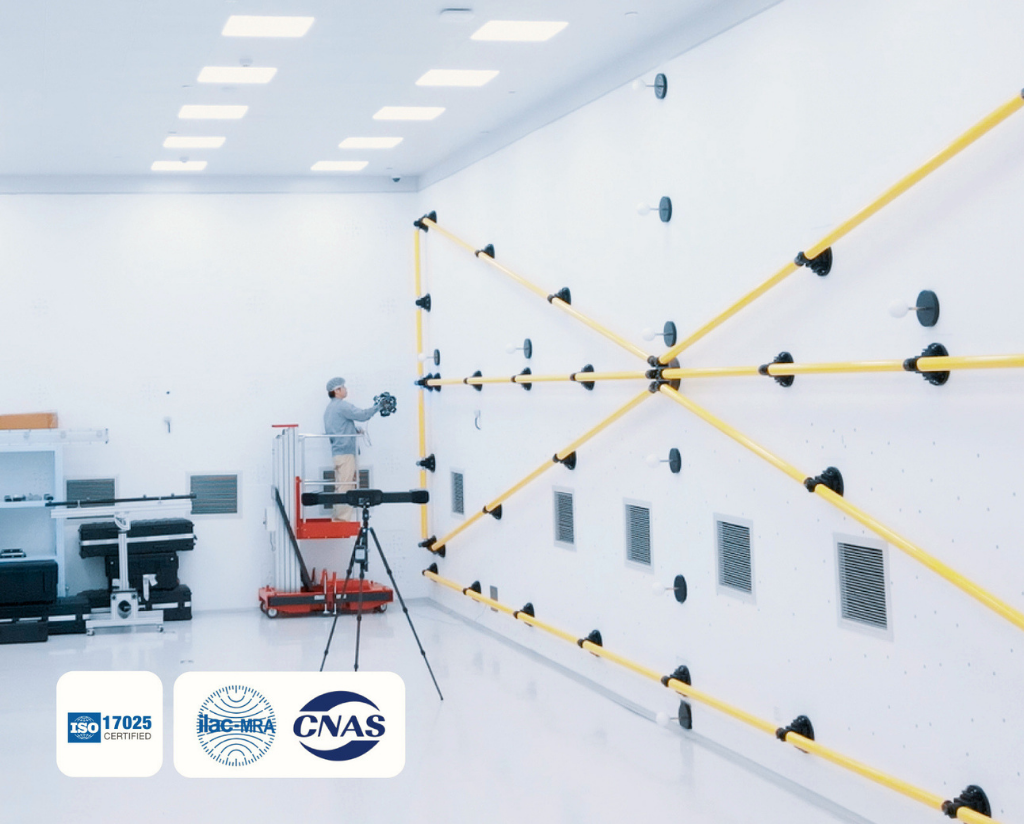

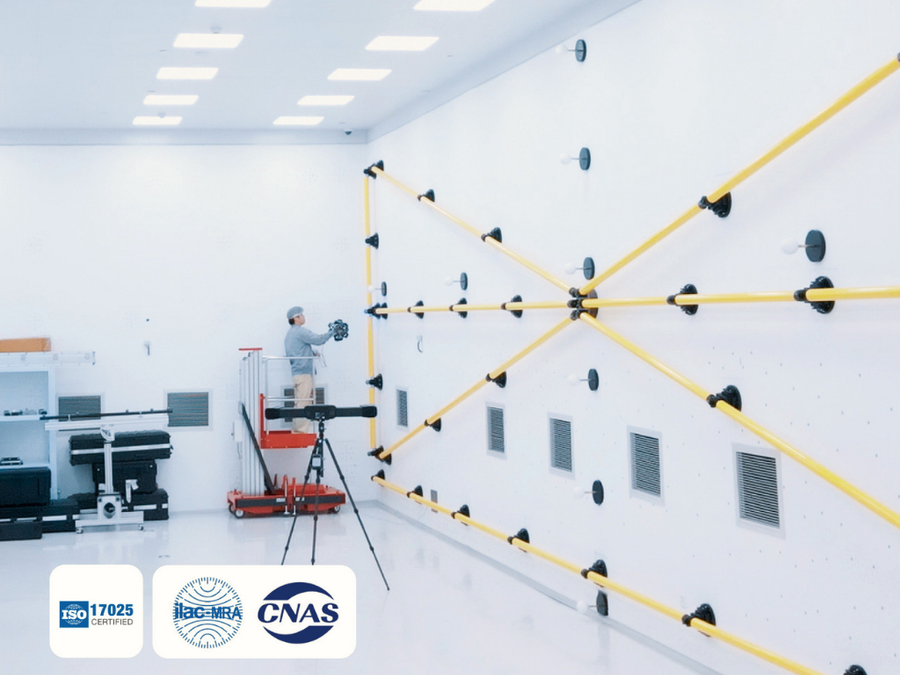

| Certifications | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX | Accuracy Certification | VDI/VDE 2634 Part 3 & ISO 10360 Certified (Tested in ISO/IEC 17025 Accredited Accuracy Lab) |
