Slice Engineering Slice Engineering Mosquito Liquid Hotend

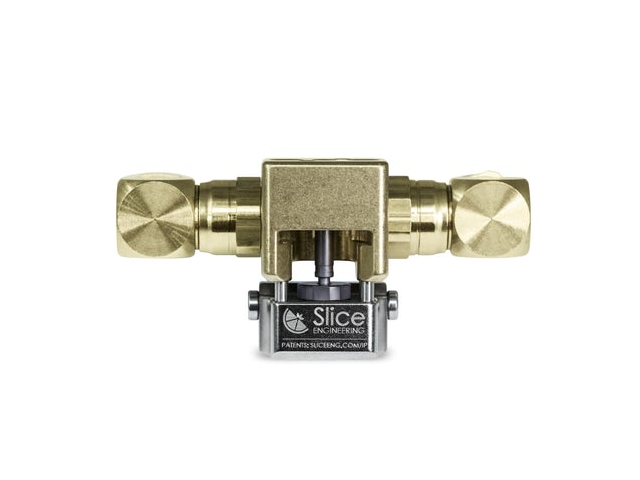

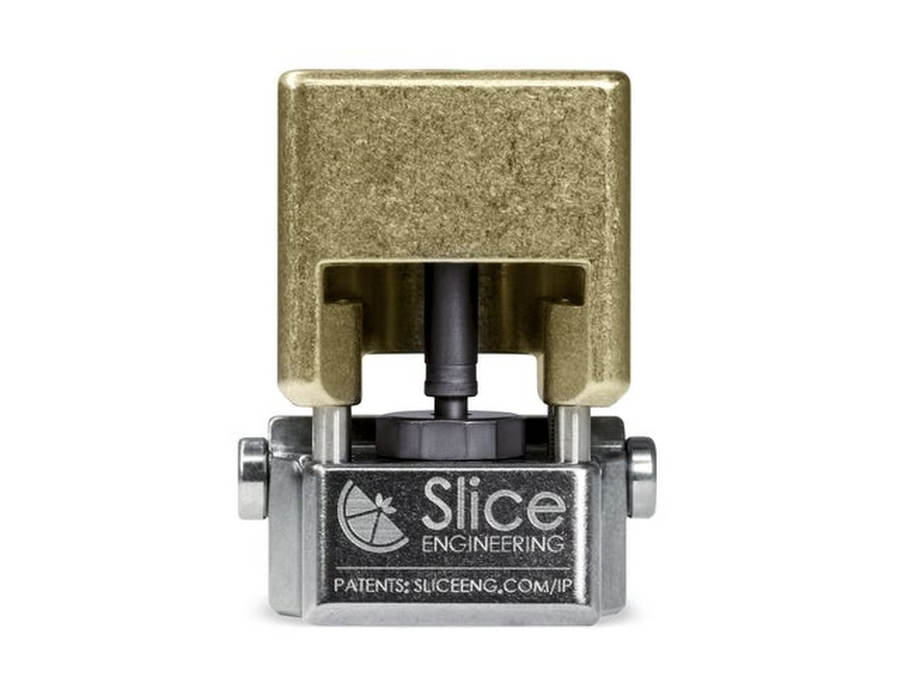

The Mosquito Liquid from Slice Engineering uses the same patented technology found in the standard, air-cool Mosquito hotend, but optimized for liquid cooling in heated enclosures. The liquid cooling block is precision machined from a corrosion-resistant bronze alloy that allows for use with most commercially available coolants.
Top Slice Engineering Mosquito Liquid Hotend Features:
• Optimized for liquid cooling in heated enclosures
• Constructed from high-quality metal
• High melt flow
• A great option for printing high-temperature plastics such as PPSU, PEEK, and PEKK
• Made in the USA
| List Price: | $189.99 |
|---|---|
| Price: | $189.99 |
| Price: | $... |
| Order Now: | Ships calculating... Free U.S. Shipping |
THE MOSQUITO LIQUID HOTEND
The Hotend for high-temperature applications
The Mosquito Liquid from Slice Engineering uses the same patented technology found in the standard, air-cool Mosquito hotend, but optimized for liquid cooling in heated enclosures. The liquid cooling block is precision machined from a corrosion-resistant bronze alloy that allows for use with most commercially available coolants.
Here are the key features of the Slice Engineering Mosquito Liquid Hotend:
- Optomized for liquid cooling in heated enclosures
- Compatible with most commercially available coolants
- Equipped with the latest version of the Bimetallic Heat Break — the first version to be totally conductively cooled
- Constructed from high-quality metal
- High melt flow
- A great option for printing high-temperature plastics such as PPSU, PEEK, and PEKK
PRECISION MACHINED AND OPTIMIZED FOR LIQUID COOLING
The Mosquito Liquid Hotend is optimized for liquid cooling in heated enclosures. Like all Hotends from Slice Engineering, Mosquito Liquid is made in the USA from high-end materials.
- The Liquid cooling block is machined from a superconductive bronze alloy, and coated with a non-marring, highly inert gold-colored plating.
- Compatible with most commercially available coolants
- Features the latest bimetallic heat break — the first version to be totally conductively cooled!
THE MOSQUITO HOTEND FOR HIGH-TEMP APPLICATIONS
The Slice Mosquito Liquid Hotend has all of the great features the air-cool Mosquito Hotend is known for — Clean & efficient printing, simple one-handed nozzle changes, and eliminating heat creep through intuitive design. In addition to this the Mosquito liquid is also:
- Used industry-wide on a range of Industrial 3D Printers
- A great option for printing high-temperature materials such as PPSU, PEEK, and PEKK
WHAT COMES WITH THE SLICE ENGINEERING MOSQUITO LIQUID HOTEND?
HARDWARE:
- (1) Mosquito Liquid - 1.75 (Fully Assembled)
- Mosquito Liquid Mounting Hardware
- Set of Mosquito Liquid hex keys for assembly, disassembly, and mounting
SLICE ENGINEERING MOSQUITO LIQUID HOTEND TECHNICAL SPECIFICATIONS:
MASS SPECIFICATIONS:
- Hotend mass: 74 grams
- Hotend mass w/ 6 mm OD Eisele Straight Fittings: 99 grams
- Hotend mass w/ 8 mm OD Eisele Straight Fittings: 108 grams
- Hotend mass w/ 6 mm OD Eisele Elbow Fittings: 122 grams
- Hotend mass w/ 8 mm OD Eisele Elbow Fittings: 158 grams
GENERAL NOTES:
1) If using Eisele Fittings, the compression side should be hand tightened and the threaded side should be torqued to a maximum of 9 Nm for a proper seal.
2) If using these compression fittings with a tube material that has a Durometer of 95A or softer, a tube support will be necessary in order to properly secure the tube within the fitting. An example of a tube support for the 6 mm fittings can be found here and a tube support for the 8 mm fittings can be found here.
3) If using a tubing softer than 95A, we tested and recommend Viton® fluoroelastomer tubing with a Durometer of 75A. Here is a link to the 6 mm OD tubing and here is a link to the 8 mm OD tubing.
4) The Mosquito® Liquid is compatible with Rep Rap style nozzles which are characterized by their M6 x 1.0 threads, 7 mm threaded length, and 12.5 mm overall length
