E3D E3D All-metal v6 HotEnd Full Kit 1.75mm Universal (with Bowden add-on) (24v)

The v6 HotEnd Full Kit from E3D with Bowden add-on has been redesigned for your convenience from the ground up! This new hot end contains the same signature high-temperature performance for high-temp printing, as well as increased functionality for printing soft and flexible filaments.

Our inventory of this kit has transitioned to the new cartridge-type format for temperature sensors. This kit contains the new thermistor cartridge and heater block.

List Price: $70.00
Price: $70.00
Price: $...
Availability: Only 1 left in stock.
Order Now: Ships Today MatterHackers Shipping Truck Free U.S. Shipping
Qty
Add to wishlist
Available Add-ons (2)
(Out of stock) Price: $21.00 View Addon »
Price: $8.00 View Addon »
Show More Add-ons
Product No. M-46C-9RXD

The v6 HotEnd allows you to print a wide variety of materials, from soft and flexible to sturdy and strong. This is possible due to the Bowden PTFE (Polytetrafluoroethylene) liner tube through the hotend that you can extend into your extruder - this gives the ability to add the confinement and constraint needed to make excellent quality prints with flexible filaments. This technology opens new doors for your 3D printing aspirations.

With High-Temperature Performance, you can print with high-temp materials like Polycarbonate and Nylon - this also eliminates HotEnd meltdown failures that are common with PTFE designs. Even though the v6 has a PTFE liner inside the hotend the liner is never subjected to high temperatures so there is no risk of damaging the liner through overheating. Basically, this design is really in-tune with all the elements, so your prints will come out crisp and accurate.

The v6 has cut back on a bunch of bulk. This clean-cut version's overall length is only 62mm, and there are significant reductions in the X/Y dimensions by using the new injection molded fan duct.

Are you eager to start printing right away? Good. So are we - and that's why here at MatterHackers we praise the v6 HotEnd. No adhesives, Kapton tape, or soldering is needed to get started. The new v6 simply locks into place with a little screw, and the updated cartridge style thermistor makes installing the hotend (as well as removing) a quick and smooth process compared to earlier methods.The parts of the hotend just screw together, and the fan duct naturally clips in - this can be manipulated in different ways to suit your setup preference.

The new Bowden coupling system sits entirely within the hotend, which means that there is no need for two separate 1.75mm products for Bowden users and Direct users. Instead, it has a 1.75mm Universal product that has the internal couplers installed. Direct users just use a short length of tubing to line the filament down into the hotend, and Bowden users can simply use a longer piece of tubing with a coupler to fix the other end to their extruder.

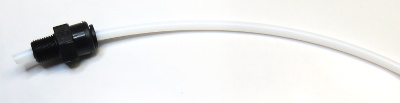

Bowden add-on

The v6 has kept its vivid thermal transition that promotes high-quality printing - this is a standard requirement with all E3D accessories and hotends. A sharp thermal break gives excellent control over material output, which provides more precise starts and stops during your extrusion. Essentially, as a printing aficionado, this means you will have a more authentic and keen print.

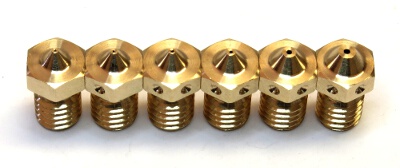

Everyone likes to have different options to fuel their creative fire. Well, another reason why the v6 HotEnd is at the head of its class is that it has multiple nozzle sizes to choose from, thus your printing dreams are limitless. The default nozzle is 0.4mm, which produces fantastic prints with a great level of speed, ease, and resolution. Collecting a plethora of nozzle sizes increases your ability to explore and experiment with different filaments and extrusion settings.

The printing options are endless with multiple nozzles!

Included:

Metal parts:

  • 1 Aluminium Heatsink (Contains embedded fitting for tubing in 1.75mm Universal and 3mm Bowden versions)
  • 1 Stainless Steel heat break
  • 1 Brass Nozzle (0.4mm)
  • 1 Aluminium Heater Block
  • 1 100K Semitec NTC thermistor (new cartridge-style)
  • 1 24v 30W Heater Cartridge
  • 1 24v 30x30x10mm fan
  • 4 Plastfast30 3.0 x 16 screws to attach the fan to the fan duct
  • 1 M3x10 socket dome screw to clamp the heater block around the heater cartridge
  • 1 Fan Duct (Injection Moulded PC)
  • 800mm of appropriately sized PTFE tubing.
  • 1 Screw-in Coupler for extruder end of tubing.
  • 1 Silicone Sock

You can find assembly instructions here.

Will the E3D hot end work with my printer/Which E3D kit do I need?

Yes, depending on how much work you are willing to do. The E3D is not a plug and play replacement for the original hot end on any printer we are aware of. The installation will require some modifications to your machine. We currently have installation guides for the following printers, and the correct E3D kit is listed next to it:

If your printer is not on the list, you should still look through the guides to get an idea of what is involved. Here are the general steps:
  1. Find a way to attach the hot end. This usually involves printing some kind of mounting piece.
  2. Modify your firmware configuration.
  3. Find a way to power the fan.

Here are some questions you should ask yourself when trying to determine if the E3D will work with your printer:
  • How does my hot end attach to the printer?
  • Can I modify my printer's firmware?
  • If you want to use the Chimera, Cyclops, or Kraken, you must also consider how many motor drivers, thermistor inputs, and heater outputs your controller board has.

Here are some questions you should ask when choosing which E3D hot end to buy:
  • Does my printer use 1.75 or 3 mm filament?
  • Does my printer run on 12 V or 24 V, or some crazy combination of the two (i.e. a 24 V PSU with the hot end throttled down to 12 V using PWM)?
  • Is my printer a direct drive or Bowden setup?

Questions View All Responses

What temperature sensor number would this be in Marlin?

Add Response

Would this hot end work for an ender 3

View 1 Response

Will this work as a direct replacement for a Fusion3 F400? https://store.fusion3design.com/collections/f400-3d-printer/products/f400-s-print-head-w-case-hardened-4mm-nozzle Is the silicone sock included?

Add Response

Hi, I bought this kit a while back to upgrade my Anet A8. I am just now getting around to doing the upgrade. Did I make a mistake purchasing this for the Anet A8 or is it compatible?

Add Response

Will this work with the Creality sermoon?

Add Response

Is this compatible with the Ender 3 v2?

View 1 Response

Is this tutorial works for makerbot mini? https://www.matterhackers.com/articles/hack-your-makerbot-with-an-e3d-all-metal-hotend

View 1 Response

Can I use this with MakerBot Mini? I want to remove the smartextruder do you have any options to remove this?

View 2 Responses

I have a CR-10S Pro, will it work with this printer? Where are the mechanical drawing of its mounting points so I can adapt for it?

View 1 Response

Is this a reasonable upgrade for the Dremel 3D20 Idea Builder? I plan to add a heated bed as well.

View 1 Response

Can I order this with a .60mm nozzle instead of the .40mm?

View 1 Response

Would this hot end work for both a Makerbot Replicator 2 and 2x?

View 1 Response

What Hotend assembly number is the best one for the Prusa i3 MK3 , Thank you

View 2 Responses

I can print PEEK with this hotend?

View 1 Response

Would I need to buy the Titan extruder or is it included?

View 1 Response

What is the thread size in the aluminum block and heat break? I want to run a tap through my block to clean it out.

View 1 Response

Is it compatible with the K8200?

View 1 Response

Is it compatible with the ramps 1.4 board?

View 1 Response

Is the compatible with the MakerGear M2 and are there any additional modifications needed to make it work with the makergear m2

View 1 Response
