E3D E3D All-metal v6 HotEnd Full Kit - 1.75mm Universal (Direct) (24v)

The v6 HotEnd Full Kit from E3D has been redesigned for your convenience from the ground up! This new hot end contains the same signature high-temperature performance for high-temp printing, as well as increased functionality for printing soft and flexible filaments.

Our inventory of this kit has transitioned to the new cartridge-type format for temperature sensors. This kit contains the new thermistor cartridge and heater block.

List Price: $65.00
Price: $65.00
Price: $...
Availability: Out of Stock Notify Me
Notify me when this is available
Add to wishlist
Available Add-ons (2)
(Out of stock) Price: $8.00 View Addon »
(Out of stock) Price: $21.00 View Addon »
Show More Add-ons
Product No. M-HP3-HK38

The v6 HotEnd allows you to print a wide variety of materials, from soft and flexible to sturdy and strong. This is possible due to the PTFE (Polytetrafluoroethylene) liner tube through the hotend that you can extend into your extruder - this gives the ability to add the confinement and constraint needed to make excellent quality prints with flexible filaments. This technology opens new doors for your 3D printing aspirations.

With High-Temperature Performance, you can print with high-temp materials like Polycarbonate and Nylon - this also eliminates HotEnd meltdown failures that are common with PTFE designs. Even though the v6 has a PTFE liner inside the hotend the liner is never subjected to high temperatures so there is no risk of damaging the liner through overheating. Basically, this design is really in-tune with all the elements, so your prints will come out crisp and accurate.

The v6 has cut back on a bunch of bulk. This clean-cut version's overall length is only 62mm, and there are significant reductions in the X/Y dimensions by using the new injection molded fan duct.

Are you eager to start printing right away? Good. So are we - and that's why here at MatterHackers we praise the v6 HotEnd. No adhesives, Kapton tape, or soldering is needed to get started. The new v6 simply locks into place with a little screw, and the updated cartridge style thermistor makes installing the hotend (as well as removing) a quick and smooth process compared to earlier methods. The parts of the hotend just screw together, and the fan duct naturally clips in - this can be manipulated in different ways to suit your setup preference.

The v6 has kept its vivid thermal transition that promotes high-quality printing - this is a standard requirement with all E3D accessories and hotends. A sharp thermal break gives excellent control over material output, which provides more precise starts and stops during your extrusion. Essentially, as a printing aficionado, this means you will have a more authentic and keen print.

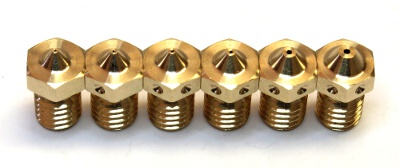

Everyone likes to have different options to fuel their creative fire. Well, another reason why the v6 HotEnd is at the head of its class is that it has multiple nozzle sizes to choose from, thus your printing dreams are limitless. The default nozzle is 0.4mm, which produces fantastic prints with a great level of speed, ease, and resolution. Collecting a plethora of nozzle sizes increases your ability to explore and experiment with different filaments and extrusion settings.

The printing options are endless with multiple nozzles!

Included:

Metal parts:

  • 1 Aluminium Heatsink (Contains embedded fitting for tubing in 1.75mm Universal and 3mm Bowden versions)
  • 1 Stainless Steel heat break
  • 1 Brass Nozzle (0.4mm)
  • 1 Aluminium Heater Block
  • 1 100K Semitec NTC thermistor (new cartridge-type format)
  • 1 24v 30W Heater Cartridge
  • 1 24v 30x30x10mm fan
  • 4 Plastfast30 3.0 x 16 screws to attach the fan to the fan duct
  • 1 M3x3 socket dome screw and M3 washer to clamp thermistor
  • 1 M3x10 socket dome screw to clamp the heater block around the heater cartridge
  • 1 Fan Duct (Injection Moulded PC)
  • 1 Silicone Sock

You can find assembly instructions here.

The new Bowden coupling system sits entirely within the hotend, which means that there is no need for two separate 1.75mm products for Bowden users and Direct users. Instead, it has a 1.75mm Universal product that has the internal couplers installed. Direct users just use a short length of tubing to line the filament down into the hotend, and Bowden users can simply use a longer piece of tubing with a coupler to fix the other end to their extruder.

Will the E3D hot end work with my printer/Which E3D kit do I need?

Yes, depending on how much work you are willing to do. The E3D is not a plug and play replacement for the original hot end on any printer we are aware of. The installation will require some modifications to your machine. We currently have installation guides for the following printers, and the correct E3D kit is listed next to it:

If your printer is not on the list, you should still look through the guides to get an idea of what is involved. Here are the general steps:
  1. Find a way to attach the hot end. This usually involves printing some kind of mounting piece.
  2. Modify your firmware configuration.
  3. Find a way to power the fan.

Here are some questions you should ask yourself when trying to determine if the E3D will work with your printer:
  • How does my hot end attach to the printer?
  • Can I modify my printer's firmware?
  • If you want to use the Chimera, Cyclops, or Kraken, you must also consider how many motor drivers, thermistor inputs, and heater outputs your controller board has.

Here are some questions you should ask when choosing which E3D hot end to buy:
  • Does my printer use 1.75 or 3 mm filament?
  • Does my printer run on 12 V or 24 V, or some crazy combination of the two (i.e. a 24 V PSU with the hot end throttled down to 12 V using PWM)?
  • Is my printer a direct drive or Bowden setup?

Questions View All Responses

What version should I buy for ender 3?

View 1 Response

Will this work with a CR-10? Or am I limited to the V6lite?

View 1 Response

Will this work on a tevo tornado? if so what steps are needed? thanks

View 1 Response

Will this work as a direct replacement for an original equipment Pulse XE D-124?

Add Response

Will this work as a direct replacement for an original equipment Pulse XE D-124?

Add Response

Can I still download the installation guide for SeeMeCNC Rostock Max V2 - 1.75mm Universal (Bowden add-on) (12v)?

Add Response

can i put this onto a monoprice mini v1, and would i need to do anything to the firmware of the printer, and if so, how would i do this?

View 1 Response

I have a robo3d r1. I purchased the 12v direct drive kit. did I purchase the right kit? some of the instillation videos show the Bowden kit

View 1 Response

What is the pitch on the Plastfast 3.0x16 screws for the fan?

View 1 Response

Any timeline on when Rostock Max v3 installation instructions will be released?

View 1 Response

When do you guys plan to have it back in stock?

View 1 Response

Can I use the Bowden add on with my printrbot simple metal?

View 1 Response

What steps do i need to install this into a i3 Mega and CR-10S? also does it include a nozzle? and i noticed there options for a thermocouple, and thermastat.. are these already included? Thank you.

View 2 Responses

Will this work with the monoprice select mini?

View 1 Response

Will this work with an Anycubic i3 Mega (Ultrabase edition)?

View 1 Response

Can fit on ROBO 3D R1 + (plus)

View 1 Response

I built, installed and PID tuned my E3Dv6 I got from you and it looks really nice. But. No matter my PLA part cooling fan setting, no matter the temperature setting, it jams. It isn't the usual jammed-in-hotend-rebuild-the-hoten sort of jam. I can get the filament out, no issue. I have raised my printer temperature 20 degrees higher than I normally print this filament type, but no good, clear under extrusion, clear extruder grinding the filament. I use a "duster" disk to keep gunk out, but nothing is working. What should I look for that I am clearly missing?

View 2 Responses

What do you have to change on the firmware? If I adjust the machine to physically be at the correct distance from the bed as well as understanding that the new mounting will impact my print area if unchanged, is there anything else?

View 1 Response

I have a Makerbot Replicator 2x. (Works only ABS and PLA) We need to work with 1.75 nylon filament. What kind of accessories do I need to change? Thank you

View 1 Response

I have a Rostock Max V3. Has anyone managed to mount this on the V3? Is it worth it - that is what are the advantages?

View 2 Responses

What size ferrule cable crimp terminals would fit the thermistor cable, as the one i have supplied is too short so need to extend it.

View 1 Response

How is this different than the Direct version?

View 3 Responses

Do you sell extension cables that fit the connector on the fan and thermistor, also the heater cartridge? I need them to be more than 2x longer then they already are?

View 1 Response

i purchased this kit for my rostock maxx v2, but i cannot get the coupler to connect to the underside of the stock extruder

View 1 Response

Do these come with the new silicone socks that are on the e3d site? http://e3d-online.com/E3D-v6/Full-Kit/v6-1.75mm-Universal-Bowden

View 1 Response

I recently installed a E3D hotend on my rostock max V2 and I noticed that the old layer fan shroud that came with the stock hotend is very close to the print bed and has started catching on prints. Is there a modified shroud that needs to be used with the new hot end?

View 1 Response

do you sell just the nipple of the bowded tube?

View 1 Response

what is the maximum temperature usable.

View 1 Response

What is the size of the coupler thread?

View 3 Responses

Is this compatible with the maker select?

View 1 Response

Will this or on a Prusa I3 3d Printer of Ebay ?

View 1 Response

I couldn't find the option to get a 24v E3D v6 - it passes all the way to credit info and still no option.

View 1 Response

Is this hot end compatible with a Lulzbot Taz 2?

View 1 Response
