Ultimaker Red PRO Series TPU (Thermoplastic Polyurethane) - 2.85mm (1lb)
The UltiMaker S5 3D printer is a powerful, large-format, dual extrusion 3D printer that is the most reliable and easy-to-use 3D printer for professional, industrial, and educational use.
Top UltiMaker S5 Engineering Bundle Features:
• Large-format - 330 x 240 x 300 mm
• Dual Extrusion - print with multiple materials at once
• Swappable Print Cores - print with advanced materials
• Includes 16 spools of Ultimaker's top-tier filament
| Price: | $50.00 (with add-ons) |
|---|---|
| Availability: | Pre-order Notify Me |
| Est. In Stock: Mar 23rd | |
| Order Now: | Ships when In Stock Free U.S. Shipping |

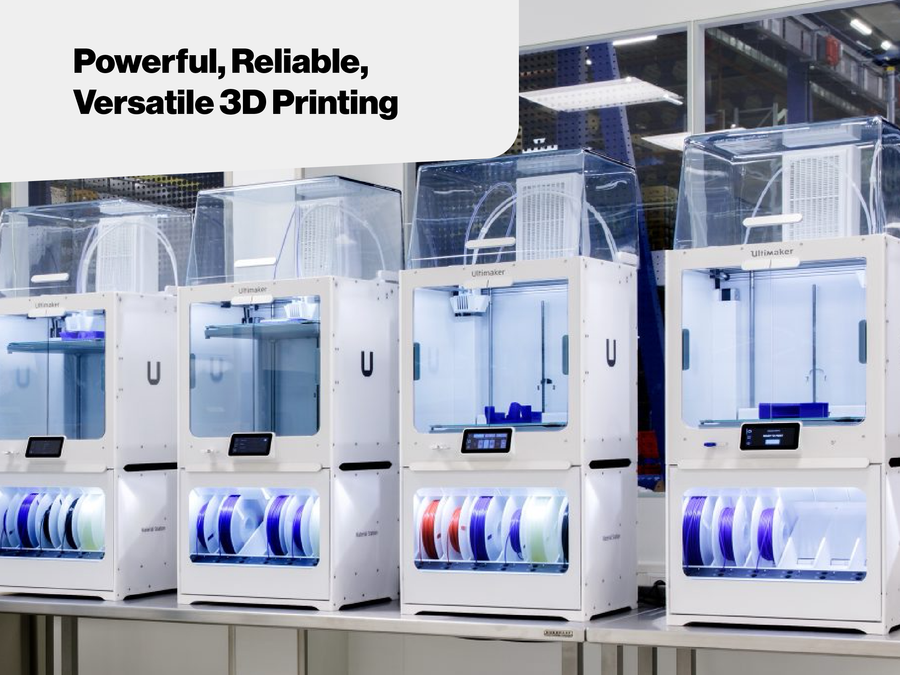

The UltiMaker S5
A Powerful, Large-Format, Dual Extrusion 3D Printer
The UltiMaker S5 3D Printer is a reliable and easy-to-use machine that's great for professionals, educators, and any industrial or manufacturing applications.

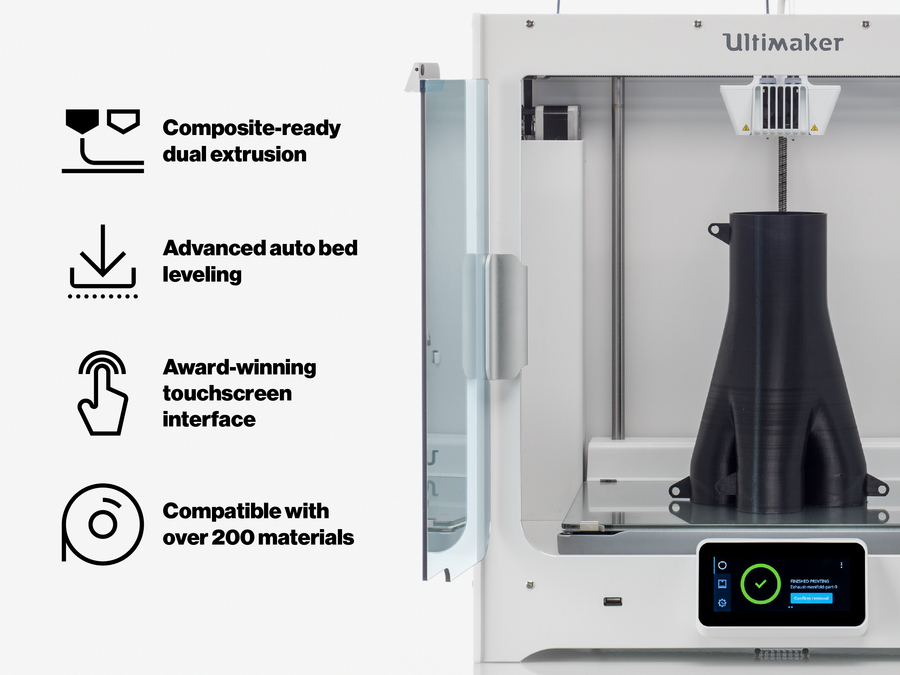

Here are the key features of the Ultimaker S5 3D printer:
- Large Build Volume
- Dual Extrusion Capabilities
- Swappable Print Cores
- Print with Any Material
- Automatic Bed Leveling
- Onboard Camera
- Free UltiMaker Essentials Software
Print Large, Functional Parts
The UltiMaker S5 3D printer has one of the largest build volumes available, allowing you to create large, end-use parts, prototypes, and custom jigs and fixtures.

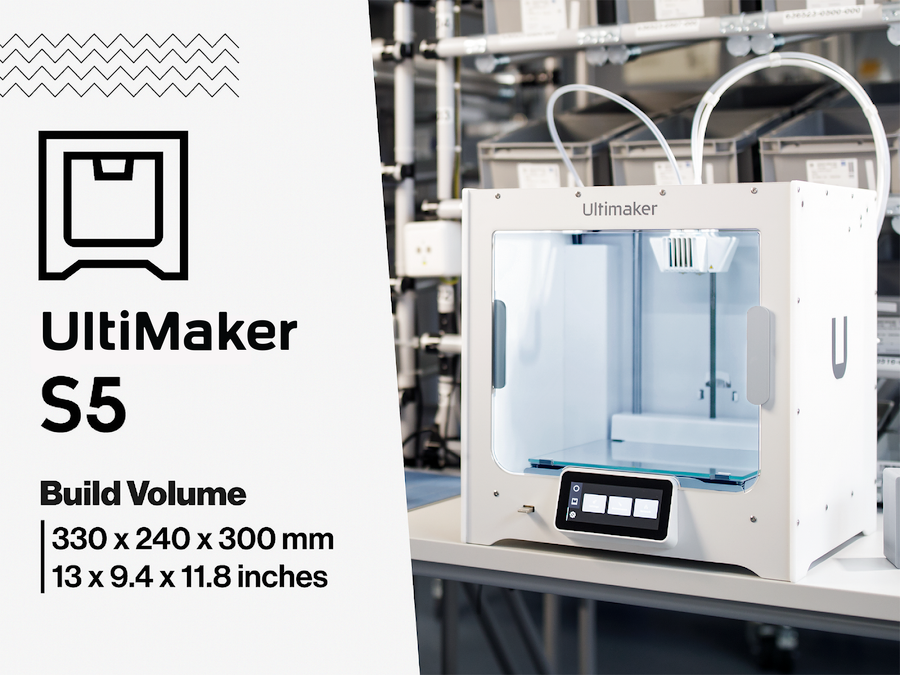

- Build Volume: 330 x 240 x 300 mm
- Prototype & create large end-use parts in-house
- Print more parts at once
- Beneficial for a wide variety of industries
Powerful, Dual Extrusion 3D Printing
The UltiMaker S5 3D printer has a top-tier dual extrusion system that produces clean, geometrically complex parts.
- Use multiple materials at once
- 3D print complex parts with soluble support structures
- Articulating nozzle-lifting system for cleaner prints
Successfully 3D Print with Any Material
The UltiMaker S5 3D printer has swappable print cores, making it incredibly easy to print between a wide range of materials, including advanced materials like NylonX and even stainless steel metal.
- Use a variety of Print Cores designed to help you succeed with any material.
- Pivot quickly to new projects with the simple print core system.
- Over 200 tested materials are available, including metal.
Flawless Prints, Time and Time Again
The UltiMaker S5 3D printer's automatic leveling system makes it easy to get started printing quickly so you can keep productivity up.
- Automatic bed leveling ensures great prints every time.
- Enhanced filament feed system and dual filament flow sensors.
- Filament flow sensors - never lose a print.
Award-Winning Interface and Remote Print Monitoring
The UltiMaker S5 3D printer has swappable print cores, making it incredibly easy to print between a wide range of materials, including advanced materials like NylonX and even stainless steel metal.
- 4.7 inch touchscreen for smooth interface control.
- Monitor your print job’s progress remotely via onboard camera.
- Print remotely over Wi-Fi directly to your Ultimaker S5
What Materials Can I Print with the UltiMaker S5 3D Printer?
The UltiMaker S5 can handle nearly every material available for desktop 3D printing, including advanced materials and composites like carbon fiber-infused NylonX and Ultrafuse Stainless Steel Metal filaments. Here is a list of 3D printing materials compatible with the UltiMaker S5:
- PLA and Tough PLA
- ABS
- PETG and CPE
- ASA
- Nylon, NylonX and NylonG
- Ultrafuse 316L and 17-4 PH
- TPU and TPE
- PVA and Soluble Supports
- Polycarbonate
- Polypropylene
- View all UltiMaker S5 Compatible materials here.
UltiMaker 3D printers are being used successfully in many industries, including aerospace, automotive, manufacturing, and education.
Streamline your Workflow with UltiMaker Essentials
UltiMaker Essentials is free with the UltiMaker S5, giving you the power to print remotely via cloud data with increased security and better print queue management.
- Reprint from queue history easily to keep production moving.
- Duplicate and reorder print jobs without reslicing.
- Upgrade to UltiMaker's Enterprise software to increase team productivity on a larger scale.
Which UltiMaker 3D Printer is Right for Me?
UltiMaker has fine-tuned their robust line of 3D printers to have a solution for every user - find out which printer will best suit your specific need in our comparison article here or watch the video below. Here are some UltiMaker 3D printer features at a glance:
- UltiMaker 2+ Connect: single extrusion workhorse starting at $2,750.
- UltiMaker S3: all the features of the S5, but with a more compact footprint starting at $4,450.
- UltiMaker S5: powerful, large-format dual extrusion machine starting at $6,950.
- UltiMaker S5 Pro Bundle: the S5 paired with the material station and air manager in one ecosystem starting at $10,800.
- UltiMaker S7: powerful, large-format dual extrusion 3D printer with built-in Air Manager and plenty of upgraded features compared to the S5 - starting at $8,299.
- UltiMaker S7 Pro Bundle: the S7 paired with the Material Station - starting at $11,500.

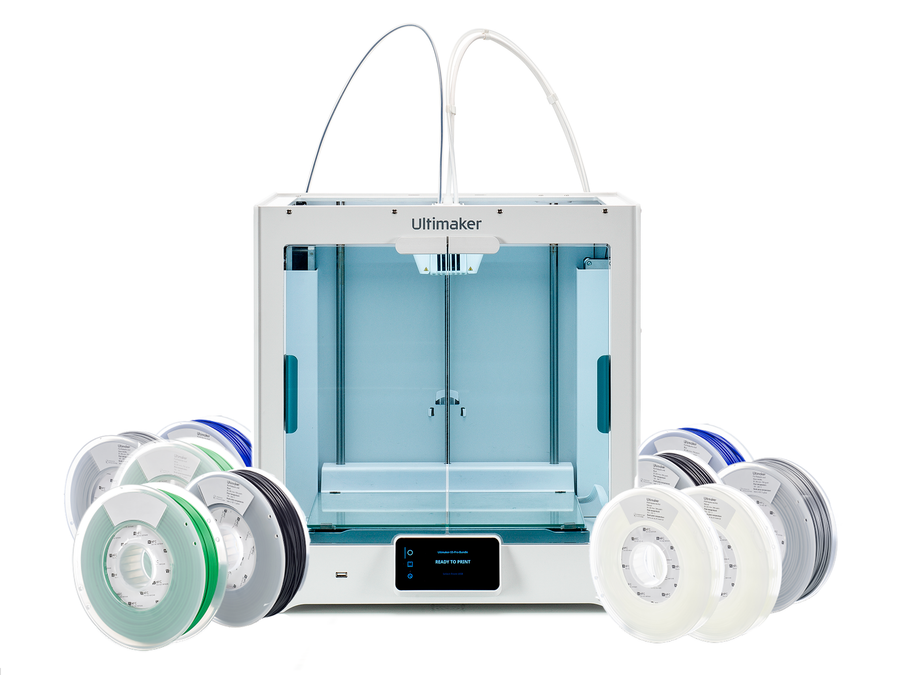

What Comes with the UltiMaker S5 Engineering Bundle?
MACHINE
- One UltiMaker S5 3D Printer
- One year of standard warranty (extended warranty options available)
INCLUDED FILAMENT IN THE ENGINEERING BUNDLE
- 16 x 750g spools of Ultimaker brand 3D printing filament:
ACCESSORIES
- Glass Build Plate
- Spool Holder with Material Guide
- Power Cable
- Ethernet Cable
- USB Stick
- Print core AA 0.4 (an additional AA Core is already installed)
- Print core BB 0.4 (already installed)
- Nozzle cover (3x)
CONSUMABLES
- Tough PLA Filament (750 g)
- PVA Soluble Support Filament (750 g)
- Glue Stick for Bed Adhesion
- Oil & Grease for Maintenance
TOOLS
- Hex Screwdriver (2 mm)
- XY Calibration Sheet
- Calibration Card
UltiMaker S5 3D Printer Technical Specifications
What are the Dimensions for the S5?
- Build Volume: 330 x 240 x 300 mm (13 x 9.5 x 11.8 inches)
- Assembled Dimensions (with spool holder installed): 495 x 585 x 780 mm (19.5 x 23 x 30.7 inches)
- Compatible filament diameter: 2.85mm
- Weight: 20.6 kg (45.4 lbs)
What are the UltiMaker S5's printer properties?
- Print Technology: FFF (Fused filament fabrication)
- Maximum Power Output: 500 W

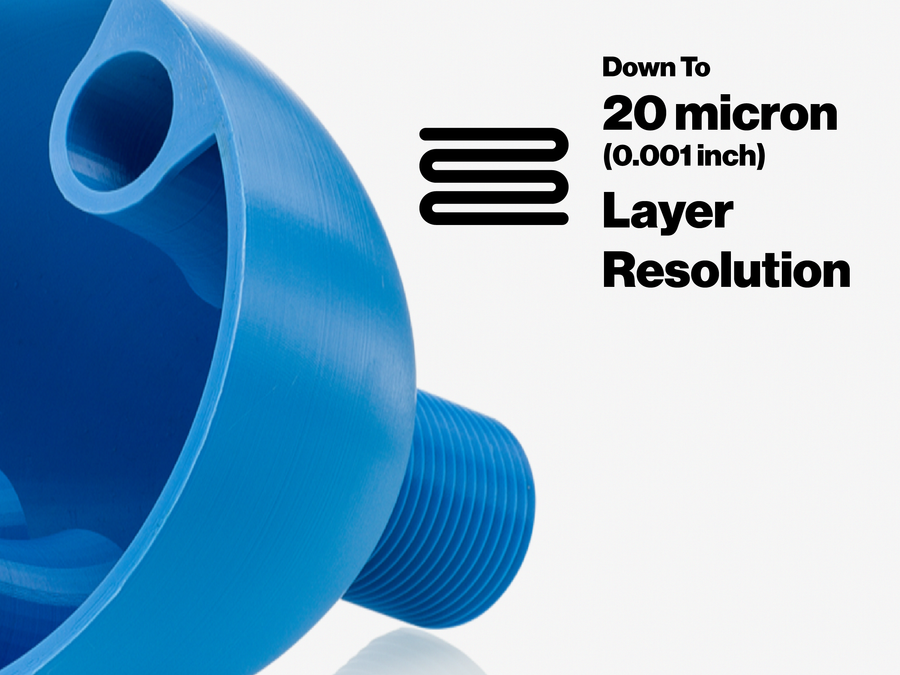

- Layer Resolution: 200 - 20 micron with 0.4mm nozzle (stock), 150 - 60 micron with 0.25 mm nozzle, 300 - 20 micron with 0.6 mm nozzle, and 600 - 20 micron with 0.8mm nozzle. Additional print cores are available here.
- XYZ Resolution: 6.9, 6.9, 2.5 micron
- Build Speed: < 24 mm³/s
- Nozzle Temperature: 180 - 280 °C
- Nozzle Heat Up Time: < 2 minutes
- Operating Sound: < 50 dBA
- Build Plate: Heated glass bed - 20 - 140 °C
- Build Plate Leveling: automatic advanced leveling
- Feeder Type: Dual-geared feeder designed for advanced composite materials
- Touchscreen Display: 4.7-inch (11.9 cm) color
- Print Head: Dual extrusion print head with an articulating nozzle-lifting system
- Print Core and Nozzles Replacement: Swappable Print Cores
- Nozzles Diameters: arrives with 0.4 mm, but 0.25 mm, 0.6 mm, and 0.8 mm are available here.
What is the Software for the UltiMaker S5?
- UltiMaker Cura: print preparation software (free)
- UltiMaker Essentials: printer management software (free and available to upgrade for enterprise solutions)
- Supported OS: MacOS, Windows, and Linux
- Supported File Types: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG
- Printable Formats: G, GCODE, GCODE.gz, UFP
- File Transfer: Wi-Fi, Ethernet, USB
Questions
What is the difference between the MH PRO series TPU and the MH Build Series TPU?
I have had generally good luck with this material. I love the properties of it. I would like some advice on reducing some stringing. I use Prusa MK3S with the Generic FLEX setting. I get a big string from the purge line to the skirt and from the skirt to the print. I am using a 240 degree print temp and my speeds are all around 30.
Is this designed to be printed in a machine with a bowden extruder?
I ordered this material (Matter Hackers Pro Series, 1.75mm, TPU, Gray) for my Bambu Lab X1E printer. When I tried to load it into the AMS, it failed and got stuck. I needed to disassemble the filament tubing to get it unstuck. Is there something that could be done to use this material with the Bambu Lab X1E printer? Perhaps mounting it to the rear spool instead if in the AMS...? Do you have any experience with this material for this printer? Thank you. Brian Wixom brianwixom@gmail.com
I discovered that Metthackers pro clear TPU is easy to break, while the cheap inland white TPU is nearly impossible to break. So I don't get it, the NylonX is major strong and I use it as the backbone of everything, but I don't understand how a cheap filament, precisely inland white TPU, outperforms mettahackers pro series in utility function. It prints better, but I can make the cheap stuff print near perfect with extra attention to settings. So I ask, whats really up with mettahackers TPU, it concerns me because I was going to invest in Mettahackers Nylon and now I am in doubt. I simply want to know why the cheap stuff was way beter than mettahackers pro series?? Please.
Can this be used as a base, with a layer change/stop and then PLA printed on top of it? I want a flexible bottom to a specific print, but I don't want the entire print flexible...
What's the shore hardness?
What are temperature limits for printed parts?
How well do TPU printed objects hold up against gasoline and oils? Thinking about making an intake boot? I'd like it to hold around 100 psi. any recommendations?
What is the chemical resistance to water rating?
What is the Light Transmittance Rating of this material? This is a commonly reported property, usually expressed as % of total light transmittance. 100% = perfect clarity, all light crosses through 0% = perfect opacity, no light crosses through.
Where is the Safety Data Sheet?
1.7mm as delivered, which made it very prone to kinking. Not printable with the EZR Struder on an Ender 3, with any temperature or nozzle. 1.8mm & above seems necessary with flexible filament. Thicker is better because it needs to transfer force to the nozzle. It might work with a dual drive direct extruder with real tight passages.
What is the Young's modulus of the material
What is the moisture level it ships with?
The TDS says "Print Temp 230C +/-10" and "Bed Temp 70C +/-10". The images on this web page say "Hot End Temp 250C +/-10" and "Bed Temp 50C +/-10". Is this inconsistency a hallmark of the MH PRO series TPU???
