Raise3D Raise3D Hyper Core ABS CF15 Filament 2.5kg
The Raise3D Hyper Core ABS CF15 Filament is a fiber-reinforced composite filament that is designed for professional and industrial applications of Hyper FFF. These filaments are ideal for producing end-use parts and heavy-duty components requiring high strength, stiffness, and heat resistance. This filament is engineered for rapid melting and unmatched performance, quality, and cost. It is ideal for high-volume manufacturing of industrial-grade parts requiring durability, stability, and efficiency.
- Superior strength and stiffness, tailored fiber distribution developed for Hyper FFF.
- Excellent interlayer bonding and dimensional stability.
- Lower nozzle abrasion.
- 3D printed parts with strong shape retention.
- Ready for polishing and acetone vapor smoothing
Please note that for the 2.5kg spool, the filament was designed to be used while inside the sealed bag. Please do not unseal it.
To learn about available discounts, training, and maintenance options, please use the form below and a MatterHackers Expert will contact you within one business day. Alternatively, you can always feel free to give us a call at +1 (800) 613-4290 or email sales@matterhackers.com.
To get an instant quote, add everything you need to your cart, and click "Download as quote".
Raise3D Hyper Core ABS CF15 Filament
Next-Generation Industrial Excellence
Whether you're looking to produce robust end-use parts or reliable manufacturing aids, Hyper Core ABS CF15 stands out as a premier choice for high-performance 3D printing. The Hyper Core ABS CF15 filament features a fiber-rich inner core with well-aligned carbon fibers, enhancing high-speed printing. The carbon-fiber core improves melting and interlayer bonding in ABS, resulting in smooth, strong parts.
Key Features of the Raise3D Hyper Core ABS CF15 Filament:
- Excellent impact resistance ensures that 3D printed parts are durable.
- The material offers chemical resistance for long-lasting, functional 3D components.
- The terpolymer ABS matrix has low moisture absorption.
- Enhanced fiber distribution improves strength and stiffness along the Z-axis.
- Special extrusion technology extends the lifespan of the nozzle.
High Versatility & Performance

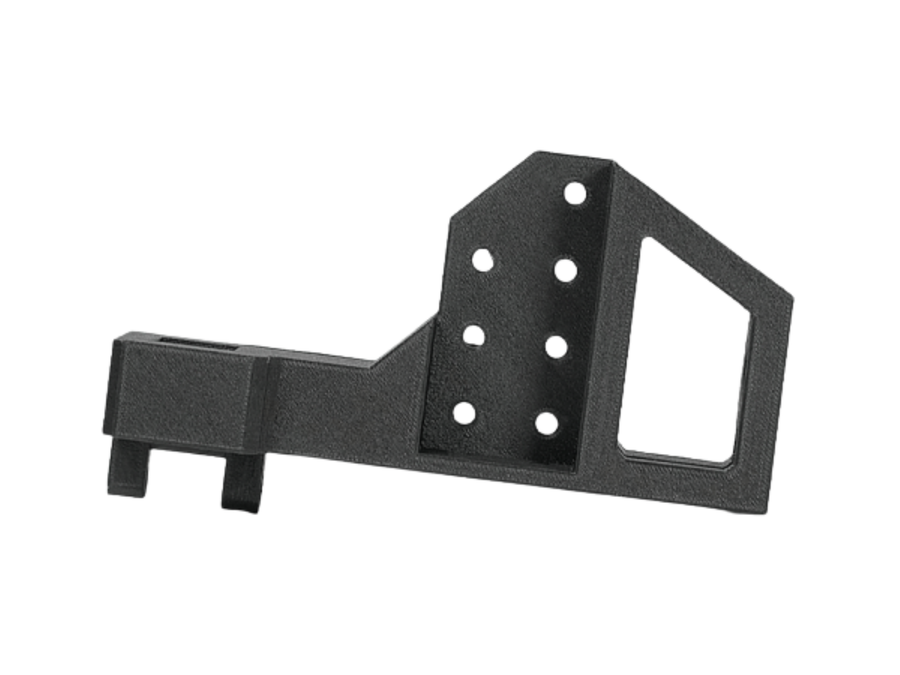

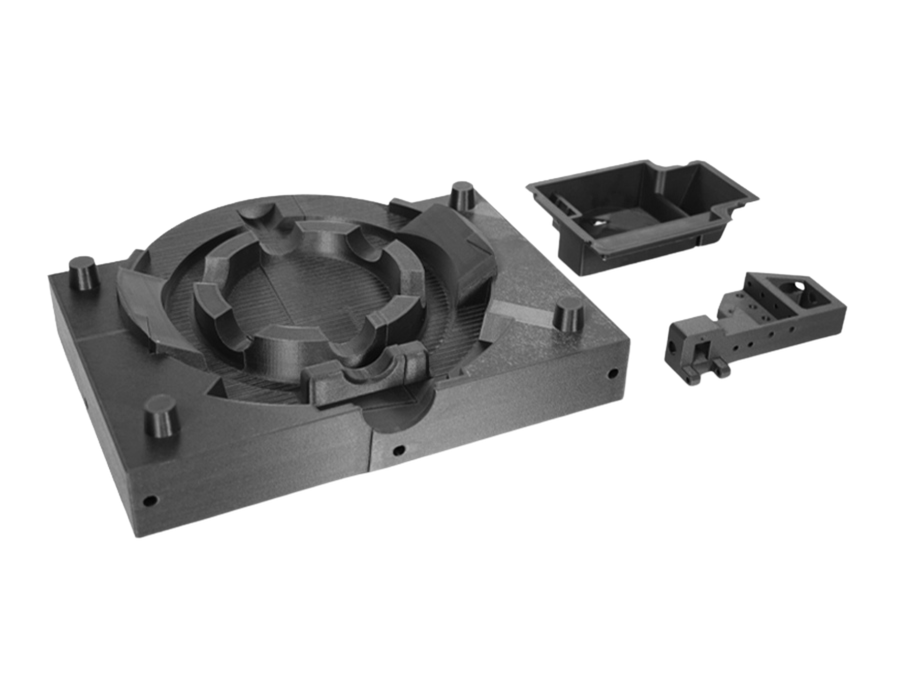

The Raise3D Hyper Core ABS CF15 filament is engineered for excellence, offering a carbon fiber-reinforced material that excels across a wide range of applications, including jigs and fixtures, manufacturing aids, end-use parts, housings, and enclosures.
- The fiber-rich inner core enhances the strength and stiffness, making it ideal for industrial-grade applications.
- Special extrusion technology promotes excellent interlayer bonding, ensuring smooth and durable 3D printed parts.
- Designed to maintain precision and reliability in every 3D print.
Effortlessly Elevated
Raise3D's Hyper Core ABS CF15 filament is designed for high-speed 3D printing and effortless post-processing, all while maintaining ease of use for a variety of applications.
- The carbon-fiber core's exceptional heat conductivity accelerates filament melting, enabling faster 3D printing without compromising quality.
- Easy post-processing with options for polishing and acetone vapor smoothing, delivering professional-grade finishes with minimal effort.
- This filament offers excellent flowability and interlayer bonding.
- Achieve reliable results with every 3D print, due to the filament's balanced properties and stable performance.
Maximize Efficiency with 2.5kg
Optimize your 3D printing workflow with the Raise3D Hyper Core ABS CF15 filament in a convenient 2.5kg spool, designed to enhance productivity and streamline your operations. Select the 2.5kg Hyper Core ABS CF15 filament to experience uninterrupted, high-quality 3D printing that meets the demands of your most ambitious projects.
- The larger spool size supports extended 3D printing sessions, reducing interruptions and boosting efficiency.
- Ideal for large-scale projects, ensuring consistent and reliable 3D printing without the need for frequent filament swaps.
- Each spool comes with a sealed filament bag that keeps the filament dry, preserving quality and performance over time.
Technical Specifications
Color Information
| Color | Color Code |
| Black | RAL 7024 |
Print Recommendations
| Nozzle temperature (°C) | 260-280℃ |
| Build Platform Temperature (°C) | 70 - 90°C |
| Layer Height (mm) | 0.2mm |
| Printing Speed (mm/s) | 50-300mm/s |
| Cooling Fan | Off |
| Drying Temperature (°C) | 60 - 80°C |
General Properties
| Property | Testing Method | Typical Value |
| Density (g/cm³) | ISO 1183, GB/T 1033 | 1.09 |
| Water absorption (%) | ISO 62: Method 1 | 0.28 |
| Diameter (mm) | / | 1.75 |
| Net weight (kg) | / | 1.0 |
| Color | / | Black |
| Odor | / | Almost odorless |
| Solubility | / | Insoluble in water |
Mechanical Properties*
| Property | Testing Method | Typical Value (XY, Flat) | Typical Value (ZX, Upright) |
| Young’s modulus (MPa) | ISO 527 | 4606 ± 192 | 2714 ± 88 |
| Tensile strength (MPa) | ISO 527 | 48 ± 3 | 28 ± 1 |
| Elongation at break (%) | ISO 527 | 1.48 ± 0.11 | 1.81 ± 0.16 |
| Bending modulus (MPa) | ISO 178 | 4365 ± 154 | / |
| Bending strength (MPa) | ISO 178 | 80 ± 1 | / |
| Charpy impact strength (kJ/m²) | ISO 179 | 8.12 ± 0.78 | / |
*Please note: All testing specimens were printed under the following conditions:
- Nozzle temperature= 250°C
- Bed temperature= 100°C
- Print speed= 50 mm/s
- Infill= 100 %; Infill angle= ±45°
Thermal Properties
| Property | Testing Method | Typical Value |
| Melt Flow Index (g/10min) | 250°C, 2.16kg | 5.5 |
| Heat Distortion Temperature3(°C) | ISO 75 @0.45 MPa | ISO 75 @1.8 MPa | 90|83 |
What's in the Box?
1KG
- Cardboard Box

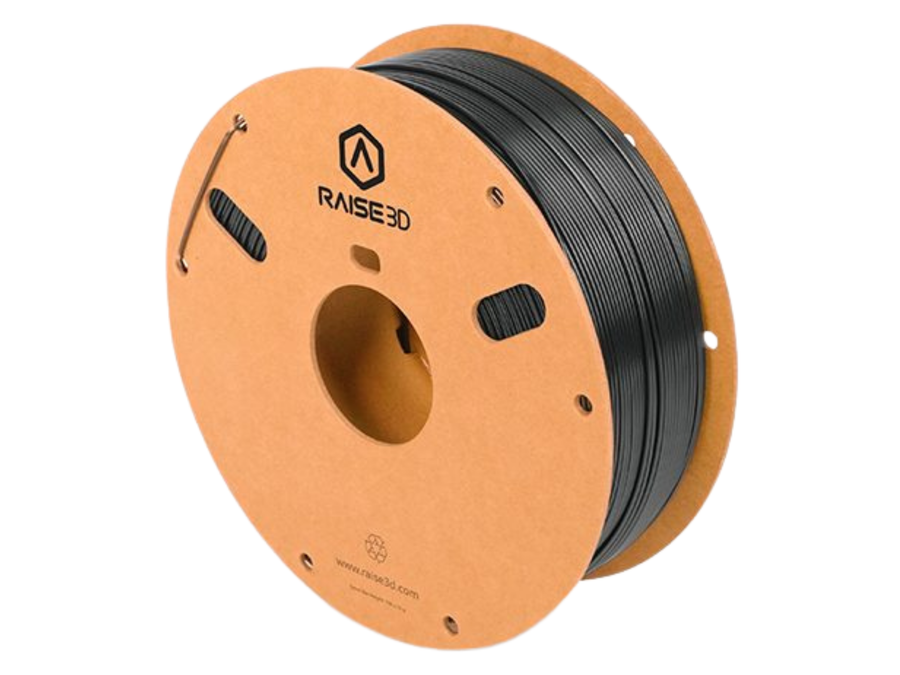

- Cardboard spool with 1kg of filament
2.5KG

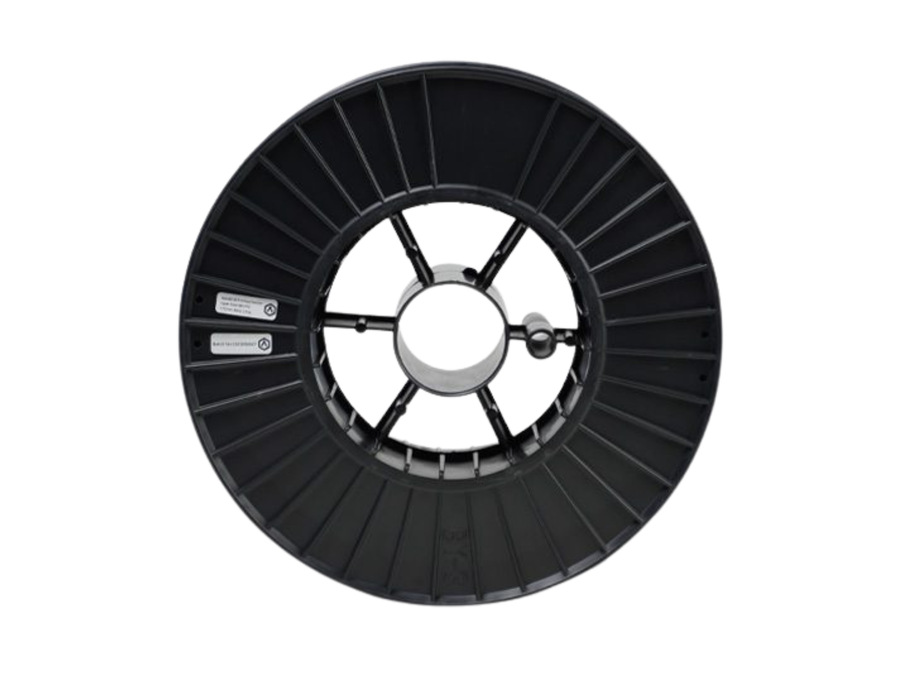

- Fully sealed spool of 2.5kg of filament
Printing Tips
- It is highly recommended to use an abrasion-resistant nozzle. A steel nozzle or a SiC nozzle is also highly recommended.
- When properly stored, drying isn’t usually necessary. But if needed, it’s recommended to dry the filament at 60-80ºC for 6-8 hours to enhance the 3D print quality.
- Be sure to 3D print in a well-ventilated area.
- For best results, use the Raise3D Pro3 HS or Pro3 3D printers.
- To enhance 3D printing, Raise3D Industrial PET Support is highly recommended.
